TDK Corporation CGA1A2C0G1H120J030BA Multilayer Ceramic Capacitor
High-performance multilayer ceramic chip capacitor designed for automotive applications, providing reliability and excellent frequency characteristics. Available in various sizes and ratings, including the popular 0603 and 1608 packages, with capacitance options ranging from 0.25pF to 22pF. Its construction ensures low ESR, high ripple resistance, and superior mechanical strength. Suitable for engine control units, power supply smoothing, and circuit decoupling, compliant with AEC-Q200 standards for automotive reliability, featuring stable temperature performance across -55°C to +125°C.
TDK Corporation CGA1A2C0G1H120J030BA Multilayer Ceramic Capacitor Specifications:
- Series Name: CGA
- Type: CGA1 [EIA CC0201], CGA2 [EIA CC0402], CGA3 [EIA CC0603], CGA4 [EIA CC0805], CGAS [EIA CC1206], CGAG [EIA CC1210], CGA8 [EIA CC1812], CGAQ [EIA CC2220]
- Capacitance Range: 0.25pF to 22pF depending on size and code
- Rated Voltage: 50V (varies by series and size), 25V, 16V, 10V, 6.3V
- Temperature Characteristics: COG (-55 to +125°C, 0 + 30 ppm/°C, X7R, X5R, X7S variants)
- Tolerance: ±0.05pF, ±0.1pF, ±5%, ±10%, ±20%
- Physical Dimensions: Sizes vary, standard 0603 (0.60x0.30mm), 1608 (1.60x0.80mm), with thickness 0.10mm to 0.20mm
- Construction: Monolithic ceramic dielectric layers, high capacitance achieved through precision layering
- Features: Low ESL, low self-heating, high ripple resistance, high mechanical strength, RoHS compliant, suitable for high-reliability automotive circuits

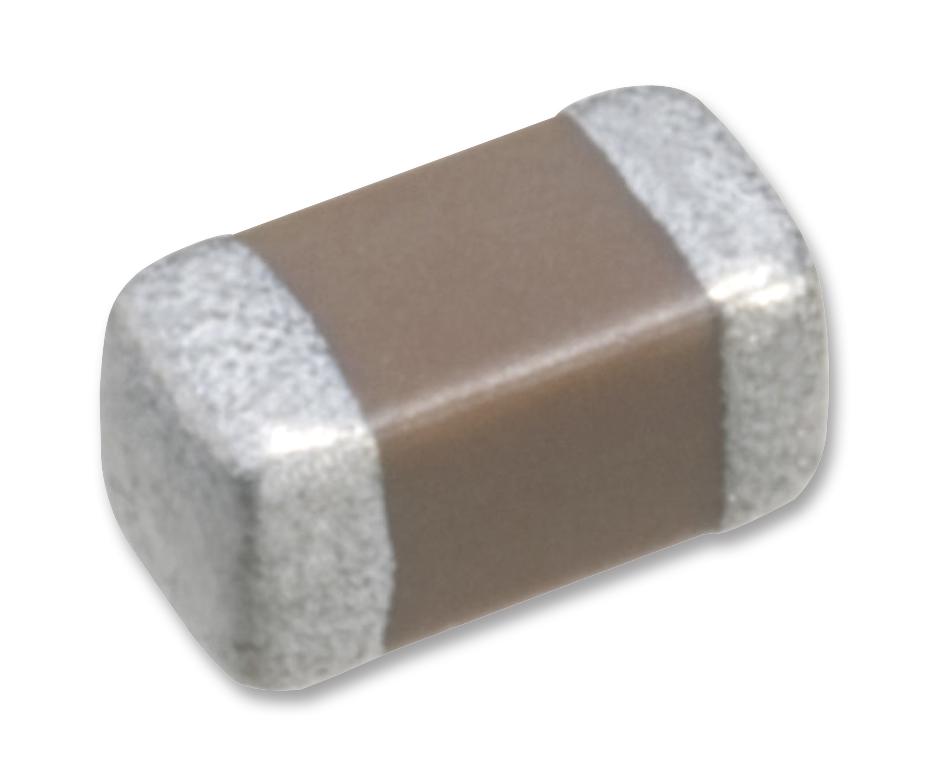

Buy the Buy TDK CGA Part Number CGA1A2C0G1H120J030BA Online
Purchase your TDK automotive-grade multilayer ceramic capacitor CGA1A2C0G1H120J030BA online today. This high-quality component offers stable performance across -55°C to +125°C, ensuring reliability in engine control units, power supply smoothing, and decoupling applications. With a compact size of 0603 and capacitance of 22pF rated at 50V, it provides low ESR, excellent frequency response, and high ripple resistance. Trust TDK’s proven durability and compliance with automotive standards for your critical electronic systems.
Order your TDK high-reliability automotive ceramic capacitor CGA1A2C0G1H120J030BA today and enhance your circuit's stability with proven quality and precision performance.
Frequently Asked Questions
Where can I buy TDK Corporation CGA1A2C0G1H120J030BA?
You can click on the BUY or RFQ button to purchase CGA1A2C0G1H120J030BA from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part CGA1A2C0G1H120J030BA?
You can download the CGA1A2C0G1H120J030BA datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of CGA1A2C0G1H120J030BA?
TDK Corporation
