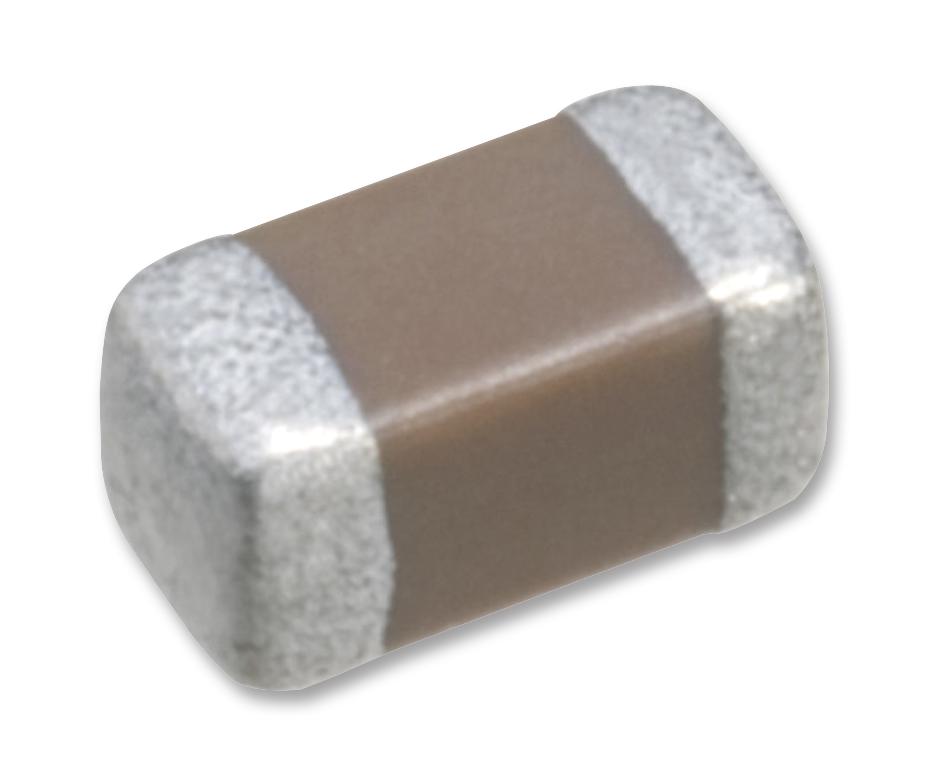

TDK Corporation CGA3E2C0G1H560J080AA Ceramic Capacitor
High-reliability multilayer ceramic chip capacitor suitable for automotive and general electronic applications. Features high capacitance, low ESR, excellent frequency performance, and robust mechanical strength due to a monolithic structure. Types include COG, X7R, and X5R with rated voltages up to 50V. Compact package sizes range from 0201 to 2220, with low self-heating and high ripple resistance, adhering to automotive quality standards such as AEC-Q200. Ideal for engine control units, power smoothing circuits, and high-reliability electronics.
TDK Corporation CGA3E2C0G1H560J080AA Ceramic Capacitor Specifications:
- Type: CGA series (CGA1, CGA2, CGA3, CGA4, CGAS, CGAG, CGA8, CGAQ)
- Construction: Monolithic ceramic dielectric layers
- Size: Range from 0201 to 2220 (mm): 0.60x0.30, 1.00x0.50, 1.60x0.80, 2.00x1.25, 3.20x1.60, 4.50x2.50
- Rated Voltage: Up to 50V (1H, 1V, 1E, 1C, 1A)
- Capacitance Range: From 0.25pF to 47μF, various series for different tolerances (+/-10%, +/-20%)
- Temperature Characteristics: COG (-55 to +125°C), X7R (-55 to +125°C, +15%), X5R (-55 to +85°C, +15%)
- Tolerance: Standard ±10%, ±20%
- Thickness: Ranges from 0.10mm to 2.50mm depending on series
- Compliance: AEC-Q200 automotive standard (for select series)
- Features: High capacitance, low ESR, excellent frequency response, high ripple resistance, low self-heating
Buy the TDK Series CGA3 1608 Ceramic Capacitor: CGA3E2C0G1H560J080AA
Order the TDK Series CGA3 1608 ceramic capacitor online today and enjoy fast delivery. This high-reliability, low ESR multilayer ceramic component is ideal for automotive engine control units, power smoothing, and high-frequency applications. Its compact size, excellent frequency characteristics, and adherence to strict automotive standards ensure long-lasting performance. Perfect for engineers seeking a dependable, high-capacity ceramic capacitor with versatile voltage ratings up to 50V and a broad temperature range. Elevate your circuit designs with trusted quality. Buy now and ensure your project’s success.
Buy TDK Series CGA3 1608 ceramic capacitor now and experience unmatched reliability and high performance in automotive and high-frequency circuits.
Frequently Asked Questions
Where can I buy TDK Corporation CGA3E2C0G1H560J080AA?
You can click on the BUY or RFQ button to purchase CGA3E2C0G1H560J080AA from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part CGA3E2C0G1H560J080AA?
You can download the CGA3E2C0G1H560J080AA datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of CGA3E2C0G1H560J080AA?
TDK Corporation
