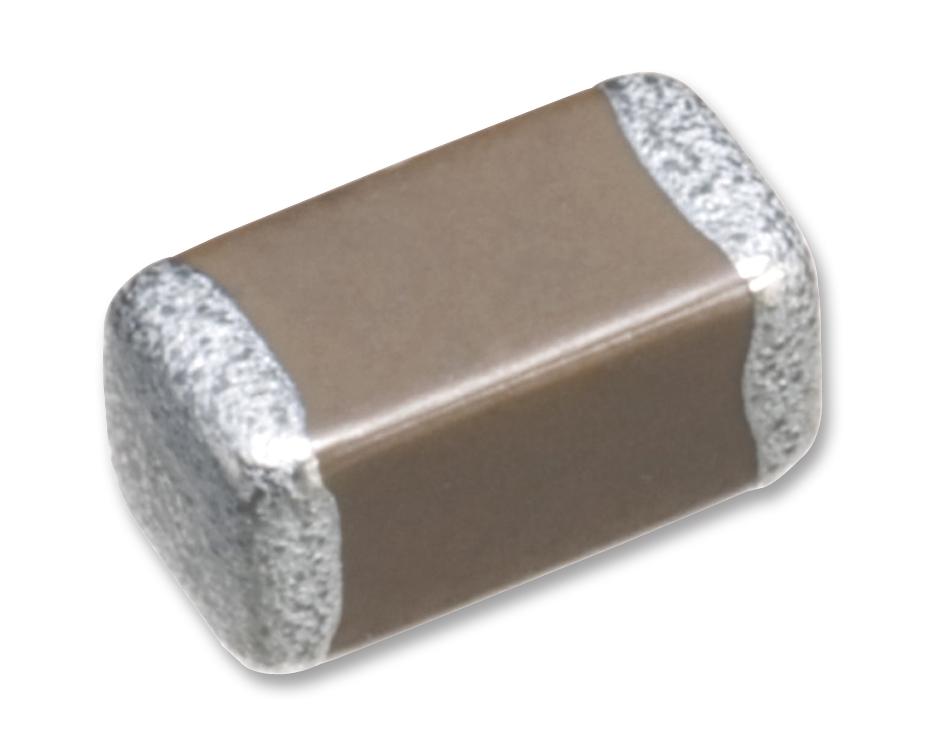

TDK Corporation CGA3E2X7R1H223K080AA Multilayer Ceramic Capacitor
High-performance multilayer ceramic chip capacitors designed for automotive applications with high reliability, low ESR, and excellent frequency characteristics. Available in a variety of compact sizes including 0603, 1005, 1608, 2012, and 2220, these capacitors feature COG, X7R, X7S, and X5R temperature characteristics, rated voltages from 6.3V to 50V, and capacitance values spanning from 1pF to 47μF. The robust monolithic structure ensures mechanical strength and superior electrical performance, suitable for engine control units, sensor modules, and power supply circuits following industry standards such as AEC-Q200.
TDK Corporation CGA3E2X7R1H223K080AA Multilayer Ceramic Capacitor Specifications:
- Sizes available: 0603, 1005, 1608, 2012, 2220
- Capacitance range: 1pF to 47μF
- Rated voltages: 6.3V, 10V, 16V, 25V, 35V, 50V
- Temperature characteristics: COG, X7R, X7S, X5R
- Capacitance tolerance: ±2%, ±5%, ±10%, ±20%
- Structural feature: Monolithic ceramic dielectric
- Electrical features: Low ESR, low self-heating, high ripple resistance
- Applications: Automotive engine control, sensors, power supply filtering
- Standards: Compliant with AEC-Q200 reliability guidelines
- Durability: Mechanical strength, excellent frequency response
- Environmental: Operating temperature from -55°C to +125°C for some types
- Packaging: Reel-based for automated SMT placement
Buy the Buy TDK Multilayer Ceramic Chip Capacitors Part Number CGA3E2X7R1H223K080AA Online
Secure your supply chain by purchasing TDK high-reliability ceramic chip capacitors online. Our CGA series offers a wide capacitance range, sizes, and voltage ratings tailored for automotive and industrial applications. Designed with advanced dielectric layers, these capacitors provide excellent electrical properties, low ESR, and superb frequency response. Whether you need small 0603 packages for compact electronics or larger 2220 types for high-capacitance demands, order now to benefit from industry-leading quality and fast delivery directly to your manufacturing line.
Order your TDK Series CGA3E2X7R1H223K080AA high-performance ceramic capacitor today and ensure your automotive power circuits operate with superior reliability and stability.
Frequently Asked Questions
Where can I buy TDK Corporation CGA3E2X7R1H223K080AA?
You can click on the BUY or RFQ button to purchase CGA3E2X7R1H223K080AA from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part CGA3E2X7R1H223K080AA?
You can download the CGA3E2X7R1H223K080AA datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of CGA3E2X7R1H223K080AA?
TDK Corporation
