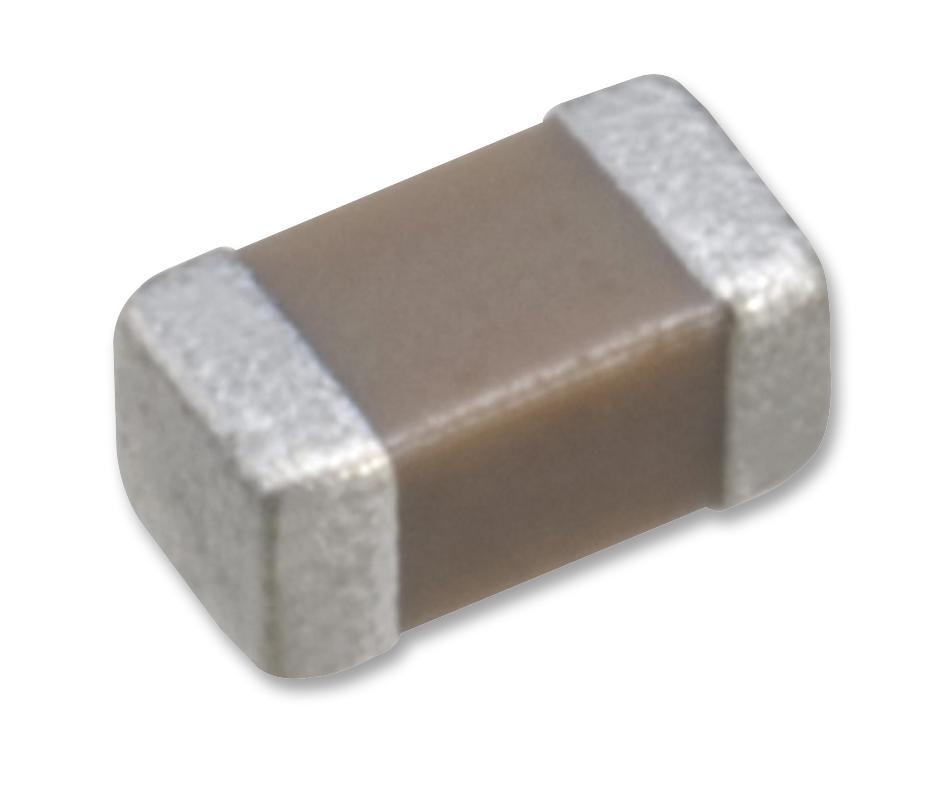

TDK Corporation CGA3E2X8R1H472K080AE Automotive Ceramic Capacitor
The CGA3E2X8R1H472K080AE is an automotive-grade ceramic capacitor designed for high reliability applications. Featuring a capacitance of 4.70F and an operating temperature range from -55°C to 150°C, it offers a voltage rating of 50Vdc with a dissipation factor of 3% max. Its compact dimensions are 1.60mm length, 0.80mm width, and 0.80mm height, making it suitable for space-constrained automotive circuits. This capacitor ensures high insulation resistance of at least 10 Gohm and maintains stable electrical performance under temperature variations and DC bias conditions. The soft termination design provides enhanced durability and reliability in harsh environments.
TDK Corporation CGA3E2X8R1H472K080AE Automotive Ceramic Capacitor Specifications:
- Capacitance: 4.70F
- Voltage Rating: 50Vdc
- Temperature Range: -55°C to +150°C
- Capacitance Tolerance: +/-10%
- Dissipation Factor: 3% max.
- Insulation Resistance: 10 Gohm min.
- Dimensions: Length 1.60mm +0.2,-0.1mm, Width 0.80mm +0.15,-0.1mm, Height 0.80mm +0.15,-0.1mm
- Material: Ceramic
- Series: CGA3(1608)
- Type: Soft Termination, Automotive Grade
- Rated Voltage: 50Vdc
- Temperature Characteristic: X8R (-55°C to 150°C, +/-15%)
- Application: Automotive electronics
- Reliability: High insulation resistance and stability under temperature and voltage variations
Buy the TDK Series CGA3E2X8R1H472K: Automotive Grade Ceramic Capacitor
Enhance your automotive electronic designs with the high-reliability ceramic capacitor. Featuring 4.70F capacitance, 50V voltage rating, and a wide temperature range from -55°C to 150°C, this component guarantees stable performance under harsh conditions. Its compact size of 1.60mm by 0.80mm makes it ideal for space-constrained applications. Engineered for durability, it offers a low dissipation factor of 3% and an insulation resistance of at least 10 Gohm, ensuring long-term reliability and consistent electrical performance in demanding automotive environments.
Order your TDK Series CGA3E2X8R1H472K today and give your automotive projects the dependable quality they deserve with high capacitance and reliable performance.
Frequently Asked Questions
Where can I buy TDK Corporation CGA3E2X8R1H472K080AE?
You can click on the BUY or RFQ button to purchase CGA3E2X8R1H472K080AE from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part CGA3E2X8R1H472K080AE?
You can download the CGA3E2X8R1H472K080AE datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of CGA3E2X8R1H472K080AE?
TDK Corporation
