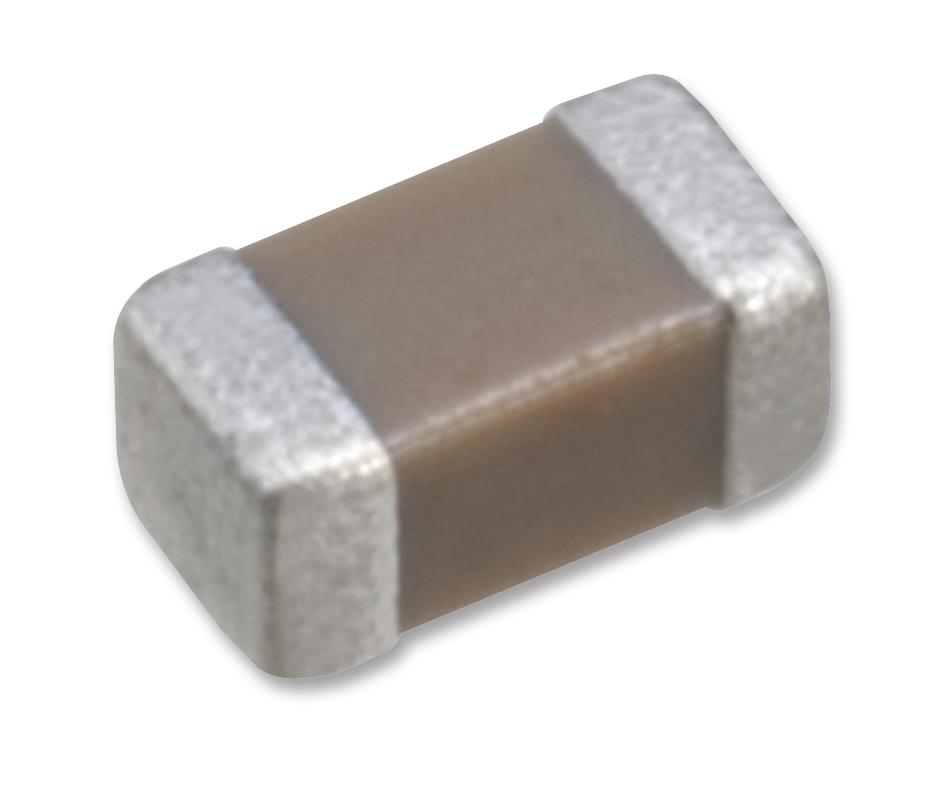

TDK Corporation CGA4C4C0G2W681J060AE Automotive Ceramic Capacitor
The CGA4C4C0G2W681J060AE is an automotive-grade multilayer ceramic capacitor designed for reliable use in automotive applications. Featuring soft termination technology, this capacitor offers stable performance over a wide temperature range from -55°C to 125°C. It provides a capacitance of 680pF with a tolerance of ±5%, rated for 450V DC. The capacitor’s dimensions are approximately 2.00mm in length, 0.60mm in height, and 0.20mm in width, making it suitable for compact, high-reliability electronic circuits. Its high insulation resistance and low ESR ensure consistent operation under dynamic voltage and temperature conditions.
TDK Corporation CGA4C4C0G2W681J060AE Automotive Ceramic Capacitor Specifications:
- Capacitance: 680pF ±5%
- Rated Voltage: 450V DC
- Temperature Range: -55°C to 125°C
- Dimensions: Length 2.00mm +0.45,-0.2mm, Width 0.20mm Min, Height 0.60mm ±0.15mm
- ESR vs. Frequency: Low ESR for high-frequency stability
- Insulation Resistance: 10 GΩ Min
- Capacitance Tolerance: ±5%
- Q Factor: Minimum 1000
- Temperature Coefficient: ±30ppm/°C
- Material: Multilayer ceramic with soft termination
- Certifications: AEC-Q200 automotive qualification
- Bias characteristics: rated for 100V to 450V DC, stable across temperature
Buy the TDK Series CGA4C4C0G2W681J060AE: Ceramic Capacitor
Buy your TDK Series CGA4C4C0G2W681J060AE ceramic capacitor online today. This high-reliability, automotive-grade capacitor offers a capacitance of 680pF at 450V DC, designed for demanding automotive environments with operating temperatures from -55°C to 125°C. Its soft termination technology ensures stable performance and durability under high-frequency and voltage conditions. Compact and rated for safety, this capacitor is ideal for automotive electronics requiring high insulation resistance and low ESR for consistent operation and longevity.
Order your TDK Series CGA4C4C0G2W681J060AE ceramic capacitor today and ensure your automotive electronics are built with dependable, high-quality components.
Frequently Asked Questions
Where can I buy TDK Corporation CGA4C4C0G2W681J060AE?
You can click on the BUY or RFQ button to purchase CGA4C4C0G2W681J060AE from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part CGA4C4C0G2W681J060AE?
You can download the CGA4C4C0G2W681J060AE datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of CGA4C4C0G2W681J060AE?
TDK Corporation
