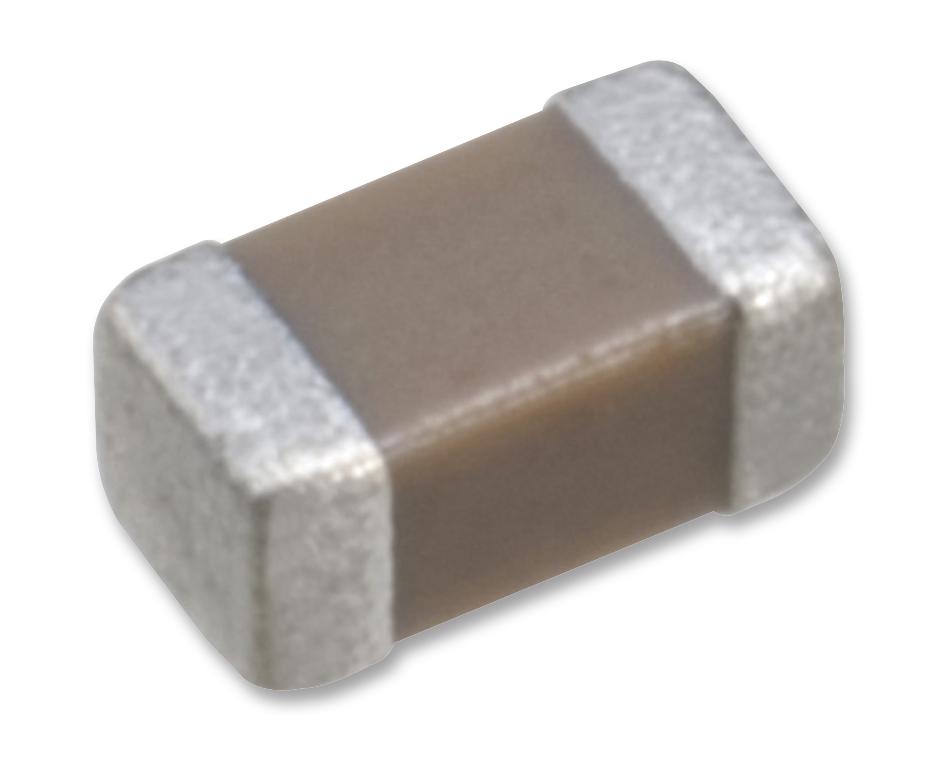

TDK Corporation CGA5H2X7R2A473K115AA Ceramic Capacitor
The product is a high-reliability multilayer ceramic chip capacitor designed for automotive applications. It features temperature stability, low residual inductance, and excellent DC bias characteristics, suitable for decoupling, filtering, and snubber circuits in advanced inverter systems for hybrid and electric vehicles. Available in EIA standard sizes from 0402 to 2220, with rated voltages up to 630V and capacitance values up to 47µF, these capacitors meet stringent automotive industry standards, ensuring stability, durability, and noise suppression in tough thermal and electrical environments.
TDK Corporation CGA5H2X7R2A473K115AA Ceramic Capacitor Specifications:
- Capacitance: 47µF
- Rated Voltage: 630V (EIA CC2220)
- Temperature Characteristics: X7R (-55 to +125°C, +15%)
- Size: 2220 (5.7 x 11.2 mm)
- Tolerance: ±20%
- Construction: Multilayer ceramic dielectric
- Application: Decoupling, noise filtering in power converters
- Compliance: AEC-Q200 automotive standard
- Durability: High resistance to thermal shocks and electrical stress
- Insulation resistance: ≥ 10,000 MΩ
- Equivalent Series Resistance: Low ESR for high-frequency stability
- Frequency Range: Suitable for high-frequency switching circuits
- Terminal Material: Silver-plated copper
- Consistency: Stable capacitance over temperature and voltage
- Packaging: Reels for automated pick-and-place assembly
Buy the Buy TDK Multilayer Ceramic Chip Capacitor Part Number CGA5H2X7R2A473K115AA Online
Secure the durability and high-frequency performance of TDK Ceramic Capacitor CGA5H2X7R2A473K115AA online today. Designed with advanced multilayer ceramic technology, it offers excellent stability, high voltage capacity up to 630V, and low ESR, making it ideal for decoupling, filtering, and snubber circuits in hybrid and electric vehicles. With sizes ranging from 0402 to 2220, this component ensures optimal space efficiency and reliable operation under severe thermal and electrical stresses. Shop now for swift delivery and premium quality assurance.
Buy TDK CGA5H2X7R2A473K115AA now and experience unmatched reliability and performance in automotive filtering applications.
Frequently Asked Questions
Where can I buy TDK Corporation CGA5H2X7R2A473K115AA?
You can click on the BUY or RFQ button to purchase CGA5H2X7R2A473K115AA from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part CGA5H2X7R2A473K115AA?
You can download the CGA5H2X7R2A473K115AA datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of CGA5H2X7R2A473K115AA?
TDK Corporation
