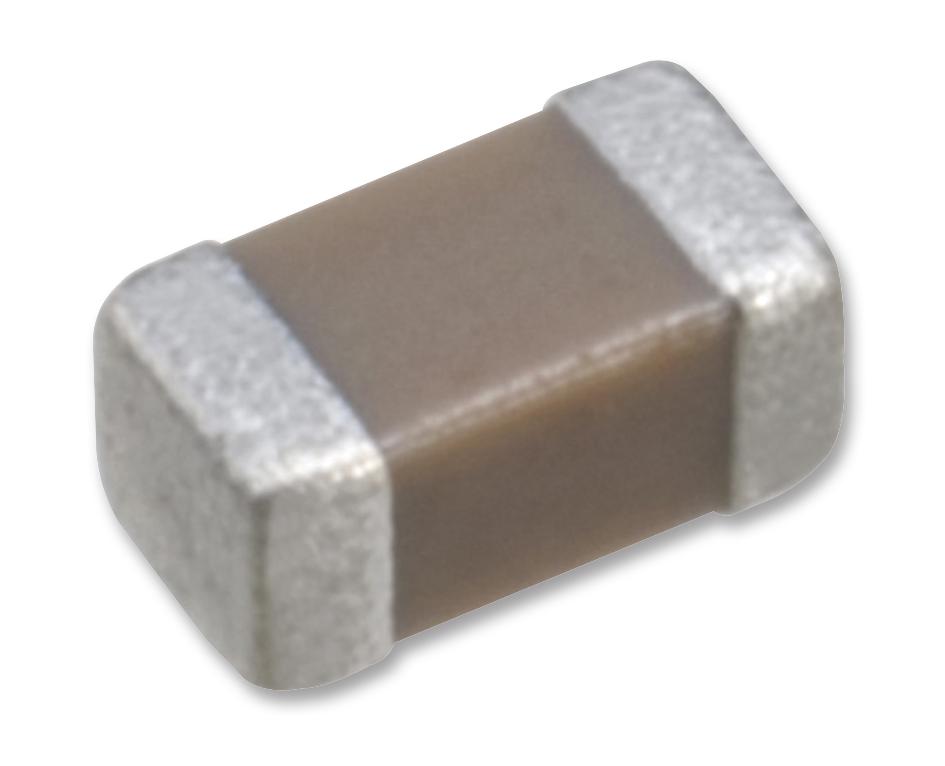

TDK Corporation CGA5H2X8R1E684K115AA Ceramic Capacitor
This ceramic capacitor features high capacitance values with reliable performance suitable for decoupling, filtering, and noise suppression in rugged industrial and automotive environments. Designed for mid voltage applications, it offers excellent DC Bias properties and temperature stability, conforming to automotive standards. With various package sizes and voltage ratings up to 630V, this capacitor ensures durability and effective performance in demanding electronic circuits, especially in high-frequency switching and power management systems of hybrid and electric vehicles.
TDK Corporation CGA5H2X8R1E684K115AA Ceramic Capacitor Specifications:
- Type: CGA5
- Series Name: Multiple sizes including 1225 and 3216
- Capacitance Range: up to 15pF
- Voltage Ratings: 100V, 250V, 450V, 630V
- Temperature Characteristics: COG (-55 to +125°C, 0 + 30 ppm/*C)
- Tolerance: ±5%, ±10%, ±20%
- Body Length: 3.20 mm (series 1225), 4.50 mm (series 3216)
- Body Width: 1.60 mm (1225), 2.50 mm (3216)
- Body Height: 1.15 mm (1225), 1.60 mm (3216)
- Terminal Width: 0.20 mm (1225), 0.20 mm (3216)
- Terminal Spacing: 0.20 mm
- Material: Ceramic dielectric
- Compliance: AEC-Q200
- Application: Decoupling, filtering, snubber circuits in automotive and industrial applications
- Features: High capacitance in thin layers, low residual inductance, excellent DC Bias properties
Buy the TDK CGA5H2X8R1E684K115AA – Reliable Ceramic Capacitor for Industrial Applications
Purchase the TDK ceramic capacitor CGA5H2X8R1E684K115AA online today and ensure your electronic system's stability and durability. Ideal for high-voltage power circuits, this capacitor offers excellent temperature stability, high capacitance, and reliable performance in demanding automotive, industrial, and power supply applications. With easy online ordering, you can quickly integrate this component into your product designs to achieve superior noise filtering and power decoupling, reducing EMI and enhancing device longevity. Trust TDK for quality and performance in your electronics.
Buy TDK ceramic capacitor CGA5H2X8R1E684K115AA now and experience unmatched reliability and performance in your power management circuits.
Frequently Asked Questions
Where can I buy TDK Corporation CGA5H2X8R1E684K115AA?
You can click on the BUY or RFQ button to purchase CGA5H2X8R1E684K115AA from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part CGA5H2X8R1E684K115AA?
You can download the CGA5H2X8R1E684K115AA datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of CGA5H2X8R1E684K115AA?
TDK Corporation
