TDK Corporation CGA5L3X7R1H155K160AB Ceramic Chip Capacitor
Multilayer Ceramic Chip Capacitors of the CGA series are designed for automotive and general purpose applications, featuring high reliability and long service life. These capacitors utilize precision technology to achieve electrolytic capacitor-like capacity with ceramic dielectric layers, exhibiting excellent frequency characteristics, low ESR, low self-heating, and high ripple resistance. Suitable for decoupling, smoothing, resonance, and coupling circuits, they conform to RoHS. Available in various sizes and capacitance ranges, they provide stable performance over temperature and voltage variations, making them ideal for on-board electronic systems.
TDK Corporation CGA5L3X7R1H155K160AB Ceramic Chip Capacitor Specifications:
- Series: CGA
- Materials: Ceramic dielectric and metals
- Types: C1005 (0.50x1.0 mm), C1608 (0.80x1.6 mm), C2012 (1.00x2.0 mm), C3216 (1.60x3.2 mm), C3225 (2.00x2.5 mm)
- Temperature Range: -55°C to +125°C (X7R, X7S, COG classes)
- Capacitance Range: 0.1 pF to several microfarads depending on size
- Tolerance: ±10%, ±20%, ±5%, ±0.5 pF depending on model
- Rated Voltage: 16V, 25V, 35V, 50V
- In Package: Reel with various pitch sizes, bulk options
- RoHS Compliance: Yes
- Dimensions: As per naming conventions, e.g., 050 (0.50mm thickness), 080 (0.80mm), etc.
- Features: Low parasitic inductance, high frequency reliability, long service life
- Application: Decoupling, smoothing, resonance, coupling circuits in automotive/electronic systems

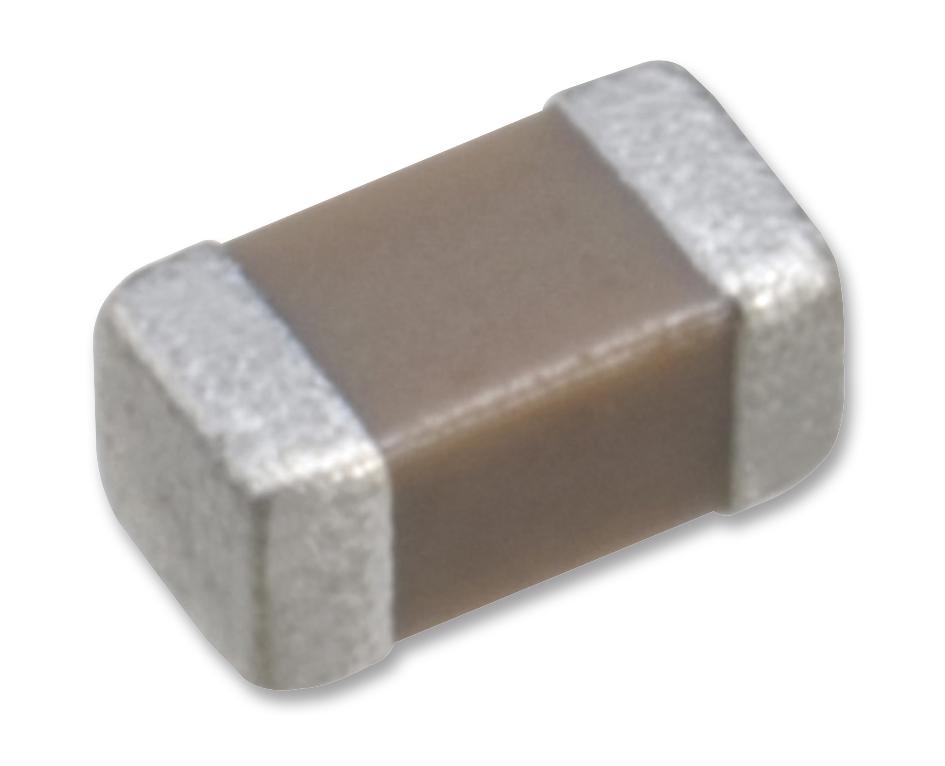

Buy the Buy Ceramic Chip Capacitors Part Number CGA5L3X7R1H155K160AB Online
Purchase our high-quality ceramic chip capacitors easily online. Designed for automotive and general purpose circuits, these capacitors ensure long-lasting durability, excellent frequency response, and RoHS compliance. Ideal for decoupling, smoothing, and filtering applications, they provide stable operation over wide temperature ranges and voltage ratings. Available in multiple sizes and capacitance values, our capacitors are suitable for various high-reliability electronic systems. Order now to enhance your circuit performance with precision-made ceramic capacitors built for demanding environments.
Get CGA series ceramic chip capacitors today—designed for high reliability, low ESR, and optimal performance in automotive and electronic applications.
Frequently Asked Questions
Where can I buy TDK Corporation CGA5L3X7R1H155K160AB?
You can click on the BUY or RFQ button to purchase CGA5L3X7R1H155K160AB from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part CGA5L3X7R1H155K160AB?
You can download the CGA5L3X7R1H155K160AB datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of CGA5L3X7R1H155K160AB?
TDK Corporation
