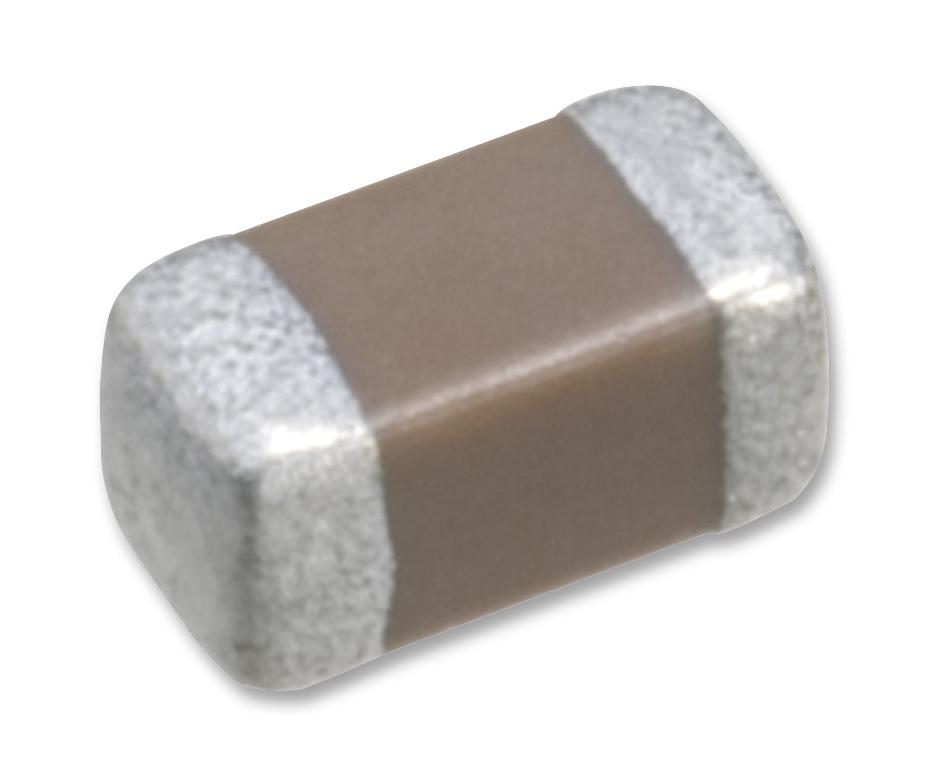

TDK Corporation CGA9P3X7T2E225K250KA Multilayer Ceramic Capacitor
High-performance multilayer ceramic chip capacitor designed for reliable use in automotive and high-frequency applications. Features include high capacitance values, excellent temperature stability, and low ESL, making it suitable for engine control units, power smoothing, and circuit filtering. The capacitor exhibits robust mechanical strength due to a monolithic structure, low self-heating, and high ripple resistance. Compliance with AEC-Q200 standards ensures its durability and reliability in demanding automotive environments. Available in various sizes and capacitance ratings, it assures optimal performance across multiple voltage and temperature ranges.
TDK Corporation CGA9P3X7T2E225K250KA Multilayer Ceramic Capacitor Specifications:
- Type: High-performance multilayer ceramic chip capacitor
- Series: CGA Series
- Construction: Monolithic structure for mechanical strength
- Capacitance Range: 15 pF to 6,800,000 pF (6.8 μF)
- Voltage Ratings: 50V, 35V, 25V, 16V, 10V, 6.3V
- Temperature Characteristics: COG, X7R, X7S, X5R
- Temperature Range: -55°C to +125°C
- Capacitance Tolerance: ±5%, ±10%, ±20%
- Size Variants: 0201 (0.60mm), 0402 (1.00mm), 0603 (1.60mm), 0805 (2.00mm), 1206 (3.20mm), 1210 (3.20mm), 1812 (4.50mm), 2220 (5.70mm), 3216 (5.00mm)
- Low ESR and Self-heating: Due to low ESR, high ripple resistance
- Frequency Performance: Low ESL, suitable for RF and high-speed circuits
- Compliance: AEC-Q200 automotive tested
- Application: Engine control units, power supply filtering, circuit smoothing
- Body Length: Varies by size, from 0.60mm to 5.70mm
- Body Width: Corresponding to size, from 0.30mm to 4.50mm
- Thickness: 0.10mm to 0.80mm depending on series
- Operating Temperature: -55°C to +125°C
- Reliability: Monolithic dielectric for durability and stability
Buy the TDK CGA9P3X7T2E225K250KA – Reliable Automotive Grade for High-Frequency Circuits
Order TDK high-reliability multilayer ceramic capacitors online today. Designed for automotive applications, these capacitors offer low ESR, excellent temperature stability, and high ripple resistance. Ideal for engine control units, power smoothing, and RF circuits, ensuring your electronic systems operate flawlessly under demanding conditions. Easily select the right size and capacitance rating from our online catalog. Enjoy fast delivery, secure checkout, and technical support to enhance your project with quality components from a trusted manufacturer.
Buy TDK CGA9P3X7T2E225K250KA now and experience unmatched reliability and performance in automotive and high-frequency applications.
Frequently Asked Questions
Where can I buy TDK Corporation CGA9P3X7T2E225K250KA?
You can click on the BUY or RFQ button to purchase CGA9P3X7T2E225K250KA from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part CGA9P3X7T2E225K250KA?
You can download the CGA9P3X7T2E225K250KA datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of CGA9P3X7T2E225K250KA?
TDK Corporation
