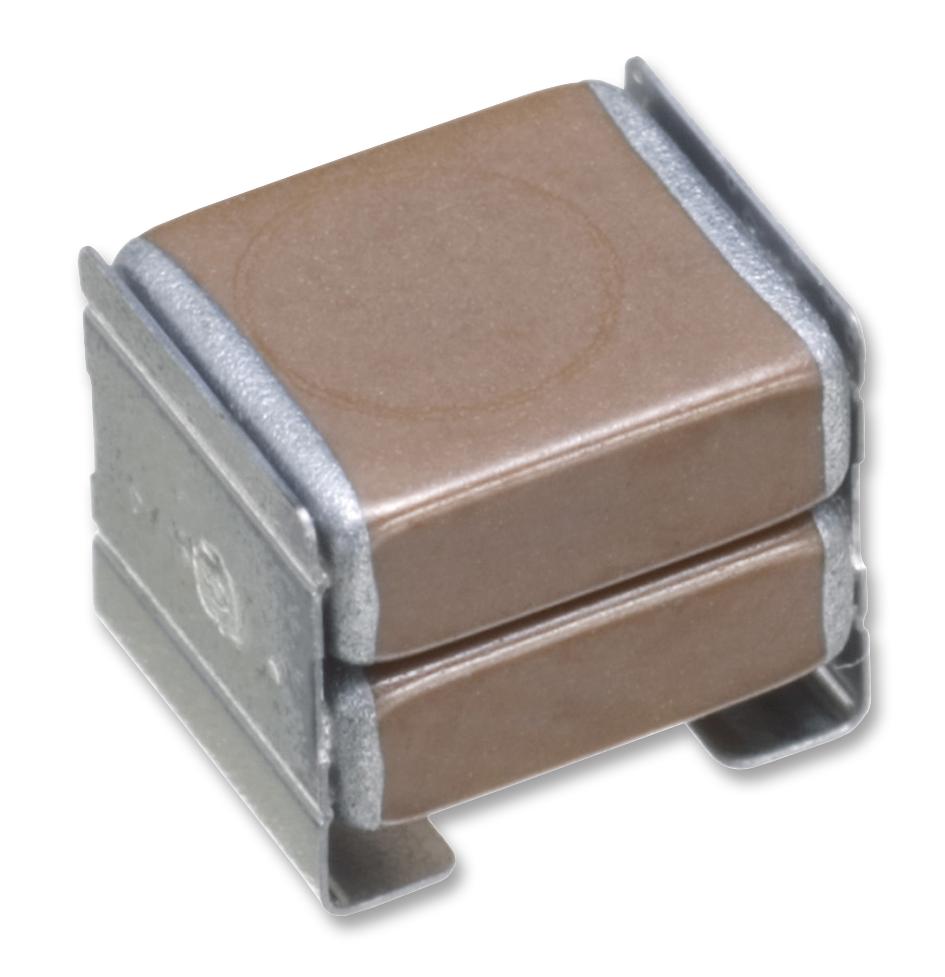

TDK Corporation CKG57NX7S1C107M500JH Ceramic Chip Capacitor
The CKG57NX7S1C107M500JH is a high-quality multilayer ceramic chip capacitor designed for reliable performance in industrial and electronic applications. Featuring X7S temperature stability (-55 to +125°C, +22%), it offers a capacitance of 100nF with a rated voltage of 630V. Its robust construction ensures low ESR and ESL, excellent vibration resistance, and thermal stress absorption. Ideal for smoothing circuits, DC-DC converters, and various high-voltage applications, it provides consistent capacitance change within specified tolerance, ensuring dependable circuit operation over a wide temperature range.
TDK Corporation CKG57NX7S1C107M500JH Ceramic Chip Capacitor Specifications:
- Capacitance: 100nF
- Rated Voltage: 630V
- Temperature Range: -55°C to +125°C
- Temperature Characteristics: X7S (+22%)
- Tolerance: ±20%
- Dimensions: 3.2mm x 2.5mm x 2.0mm (L x W x T)
- Material: Multilayer ceramic with X7S dielectric
- ESR and ESL: Low to ensure minimal signal loss
- Construction: SMD chip type with robust packaging
- Operating temperature: Wide range suitable for high-stress environments
- Mechanical endurance: Enhanced for vibration resistance
- Applications: Smoothing circuits, high-voltage power supplies, inverters
Buy the TDK CKG57NX7S1C107M500JH – Reliable Ceramic Capacitor for Industrial Applications
Purchase the TDK Ceramic Chip Capacitor CKG57NX7S1C107M500JH online today for reliable performance in industrial electronics. Perfect for smoothing circuits, inverters, and high-voltage applications, this capacitor offers stable capacitance, low ESR and ESL, and excellent vibration resistance. Its robust X7S dielectric ensures operation from -55°C to +125°C, providing consistent results across fluctuating temperatures. Easy ordering makes it convenient to get this essential component for your power supply, inverter, or high-voltage electronic projects, ensuring durability and efficiency.
Order your TDK SeriesCKG57NX7S1C107M500JH today and give your circuits the dependable performance they deserve for high-voltage and smoothing needs.
Frequently Asked Questions
Where can I buy TDK Corporation CKG57NX7S1C107M500JH?
You can click on the BUY or RFQ button to purchase CKG57NX7S1C107M500JH from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part CKG57NX7S1C107M500JH?
You can download the CKG57NX7S1C107M500JH datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of CKG57NX7S1C107M500JH?
TDK Corporation
