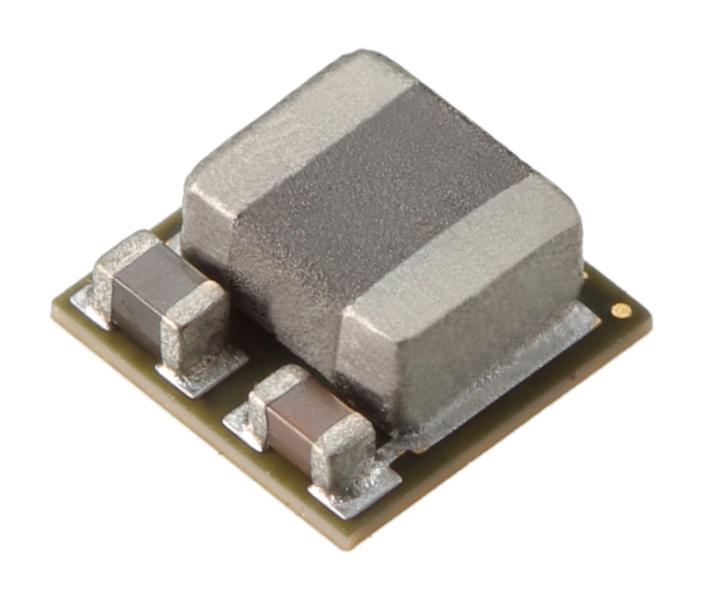

TDK Corporation FS14061000AS Micro Power Regulator
The FS1406 is a highly efficient, fully integrated micro-point-of-load (uPOL™) buck regulator with a compact 3.3mm x 3.3mm x 1.5mm package. Capable of continuous 6A load, it features an on-chip inductor, digital power management via I2C, programmable output voltage from 0.6V to 2.5V with 0.5% accuracy, and integrated protection including over-voltage, over-current, thermal shutdown, and UVLO. Suitable for space-constrained applications in storage, telecom, industrial, server, and computing systems, it ensures efficient power conversion with minimal external components and robust thermal performance.
TDK Corporation FS14061000AS Micro Power Regulator Specifications:
- Package Size: 3.3mm x 3.3mm x 1.5mm
- Load Capacity: 6A continuous
- Input Voltage Range: 4.5V to 16V
- Output Voltage Range: 0.6V to 2.5V
- Output Voltage Accuracy: ±0.5% at startup
- Switching Frequency: Up to 2MHz, programmable
- Protection: UVLO, over-voltage, over-current, thermal shutdown, hiccup mode
- Operating Temperature Range: -40°C to +125°C
- Package Type: Surface-mount, SMT
- Control Interface: I2C serial bus
- Built-in inductor and capacitors for minimal external parts
- High efficiency with thermal management features
- Compliance: RoHS, REACH, Halogen-free
- Ideal for point-of-load power modules, peripheral voltage regulation, and industrial applications
Buy the TDK Series FS1406 Buck Regulator: FS14061000AS
Order the TDK FS14061000AS now for a highly efficient, fully integrated buck regulator designed for space-constrained applications. Featuring programmable output from 0.6V to 2.5V, 6A load capacity, and built-in protections including over-voltage, over-current, and thermal shutdown, it enables reliable power management in industrial, telecom, storage, and computing systems. Its compact 3.3mm x 3.3mm x 1.5mm package, I2C control, and minimal external components make it ideal for automated assembly and space-sensitive designs. Upgrade your power architecture today with this advanced, reliable solution.
Buy TDK FS14061000AS now and experience unmatched reliability and performance in compact power regulation solutions.
