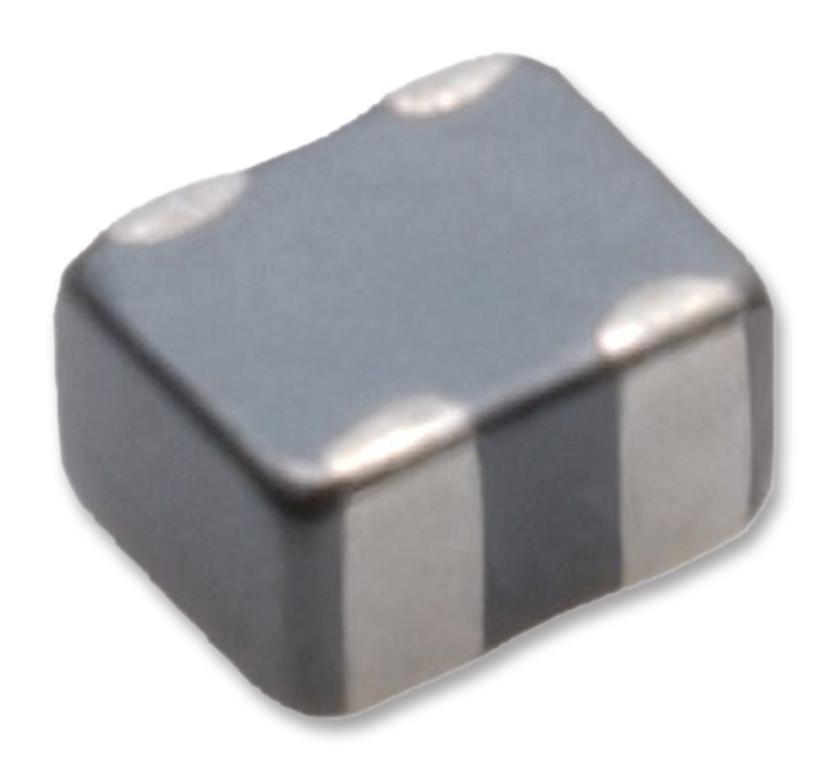

TDK Corporation MCZ1210AH360L2TA0G High-Speed Common Mode Filter
The MCZ1210AH series are compact multilayer common mode filters designed for high-speed differential signals such as USB2.0 and LVDS. They provide EMC suppression across a wide frequency range while maintaining high differential mode transmission quality. Suitable for electronic devices including smartphones, tablets, PCs, LCD and DLP televisions, projectors, and audio equipment, these filters operate from -40°C to +85°C. They feature low DC resistance, high common mode impedance at 100MHz, and are available in various impedance ratings with reliable insulation and rated current specifications, ensuring effective noise suppression and signal integrity.
TDK Corporation MCZ1210AH360L2TA0G High-Speed Common Mode Filter Specifications:
- Dimensions: 12.0 x 10.0 x 2.0 mm
- Impedance at 100MHz: 36 Ω, 90 Ω, 200 Ω, 300 Ω depending on type
- Rated Current: 200 mA, 700 mA, 100 mA
- Rated Voltage: 5 V, 70 V
- Common Mode Impedance: 36 Ω to 300 Ω
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 10 MΩ minimum
- Capacitance: Low differential capacitance for high-speed signals
- Material: Multilayer ceramic technology
- Package: Surface-mount, compatible with reflow soldering
Buy the Buy EMC Components Common Mode Filter Part Number MCZ1210AH360L2TAO G Online
Purchase the MCZ1210AH series high-speed common mode filters online to ensure effective electromagnetic interference suppression in your electronic designs. These compact multilayer ceramic filters enable wide frequency range differential mode transmission, maintaining signal integrity while reducing noise for applications like USB2.0, LVDS, smartphones, PCs, and displays. They feature robust insulation, reliable rated current, and operation from -40°C to +85°C. Buy today for high-performance EMC solutions that meet industry standards and ensure long-lasting device performance.
Get EMC Components high-speed differential filters today—designed for precision EMC suppression and durability in electronic systems.
Frequently Asked Questions
Where can I buy TDK Corporation MCZ1210AH360L2TA0G?
You can click on the BUY or RFQ button to purchase MCZ1210AH360L2TA0G from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part MCZ1210AH360L2TA0G?
You can download the MCZ1210AH360L2TA0G datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of MCZ1210AH360L2TA0G?
TDK Corporation
