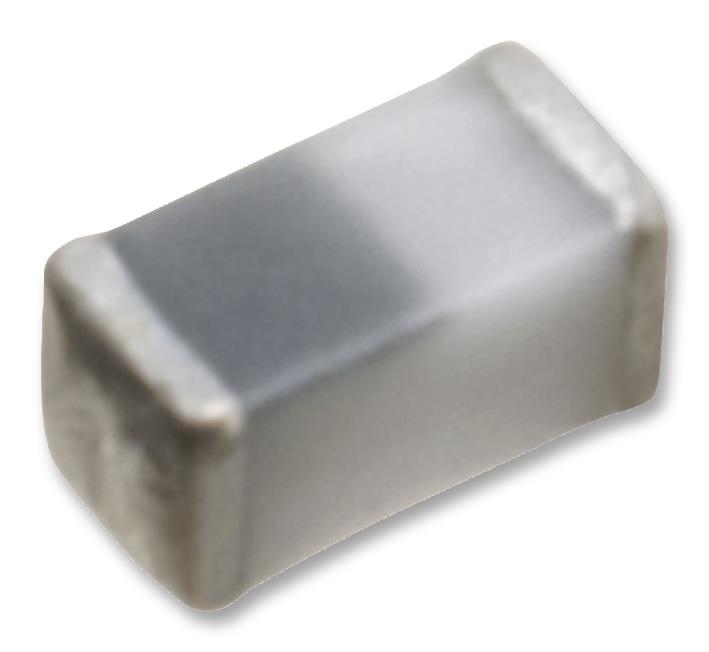

TDK Corporation MLG0603P91NJT000 High-Frequency Ceramic Inductor
High-frequency multilayer ceramic inductors optimized for mobile communication devices, such as smartphones and Wi-Fi modules. The series features compact 0402 and 0603 sizes with inductance values from 0.2nH to 120nH, offering high Q factors, minimized residual inductance, and excellent temperature stability. Designed using advanced monolithic ceramic and conductive material sintering processes, these inductors deliver reliable performance in RF and high-speed circuits, making them ideal for wireless and high-frequency applications requiring precise inductance and low loss.
TDK Corporation MLG0603P91NJT000 High-Frequency Ceramic Inductor Specifications:
- Size: 0402 (±0.02 mm), 0603 (±0.05 mm)
- Inductance Range: 0.2nH to 120nH with 0.1nH steps
- Material: Multilayer ceramic, conductive internal layers
- Temperature Range: -55°C to +125°C
- Storage Conditions: 5°C to 40°C, humidity 10%-75% RH, shelf life less than 12 months
- RoHS compliant, Halogen-free, Lead-free solder compatible
- Rated current varies from 70mA to 1000mA depending on model
- Rated frequency up to 2.4GHz
- Q factor: Usually 9 to 800MHz, with high Q above 800 MHz
- Package Quantity: 20,000 pieces/reel, individual weight approximately 0.07g
- Reel dimensions: 14.4 mm max diameter, taping with specified land pattern
- Operating Temperature: -55°C to +125°C
- Mechanical characteristics: RoHS, Halogen-free, lead-free compatible
- Measurement Equipment: Agilent Technologies, Yokogawa, etc., calibration traceable
- Compliance: Meets RoHS directive for environmental safety
- Residual Inductance (Short Bar): Usually below 0.11nH
- Manufactured using monolithic sintering for RF applications
- Application: RF modules, high-frequency filters, wireless communication, smartphones, tablets, Bluetooth, WLAN
Buy the Brand PartNumber – Reliable High-Frequency Inductors for Industrial Applications
Order the Brand PartNumber high-frequency ceramic inductor online today and enjoy reliable, low-loss performance in RF circuits. Designed for high-frequency stability, high Q factors, and compact size, these inductors are perfect for wireless communication modules, smartphones, and high-speed electronics. With RoHS compliance and lead-free solder compatibility, they meet strict environmental standards. Experience quick delivery and competitive pricing by purchasing these advanced multilayer ceramic inductors online, ensuring your high-frequency applications perform at their best with minimized interference and excellent thermal stability.
Buy Brand PartNumber high-frequency ceramic inductors now and experience unmatched performance in RF and signal integrity for industrial needs.
Frequently Asked Questions
Where can I buy TDK Corporation MLG0603P91NJT000?
You can click on the BUY or RFQ button to purchase MLG0603P91NJT000 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part MLG0603P91NJT000?
You can download the MLG0603P91NJT000 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of MLG0603P91NJT000?
TDK Corporation
