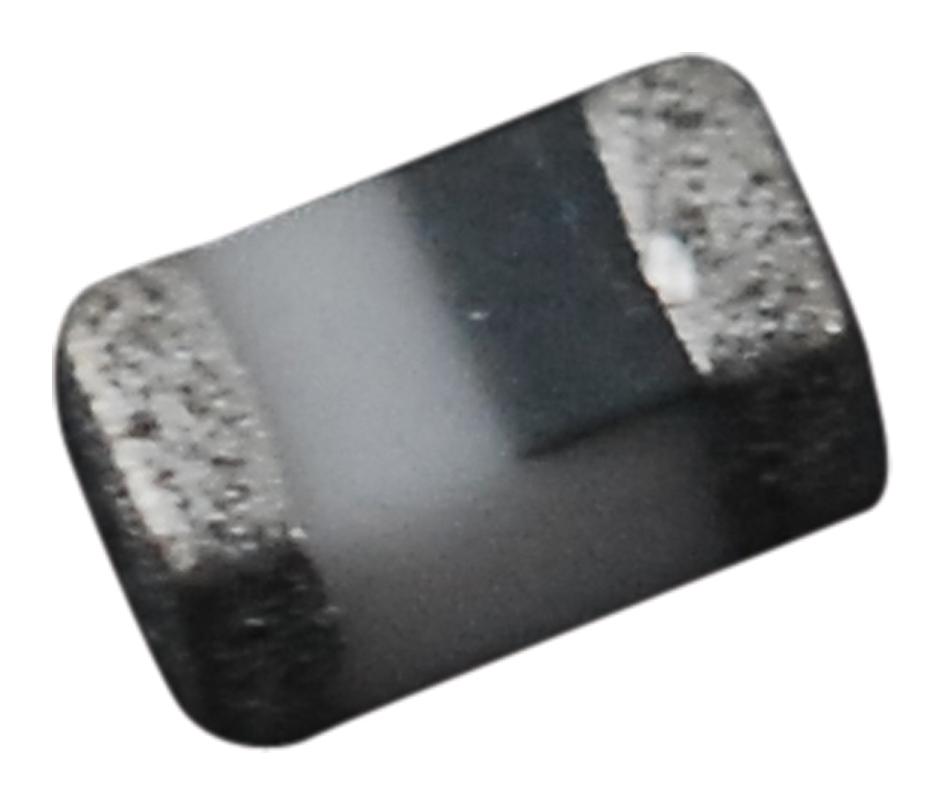

TDK Corporation MLG1005S0N6CT000 High Frequency Ceramic Inductor
The MLG1005S type is a high-frequency multilayer ceramic inductor designed for mobile communication devices, Bluetooth, Wi-LAN, VCOs, PAs, and tuners. It features an advanced monolithic ceramic-sintering process, compact 1.0x0.5x0.5 mm dimensions, and excellent electrical characteristics suitable for high-frequency circuits. This non-magnetic shield type is RoHS compliant, halogen-free, and capable of operating within -55°C to +125°C, making it ideal for portable electronics and RF modules in mobile communications. Its reliable construction ensures high Q-factor, low ESR, and stable inductance for demanding RF applications.
TDK Corporation MLG1005S0N6CT000 High Frequency Ceramic Inductor Specifications:
- Series: MLG1005S
- Dimensions: 1.0x0.5x0.5 mm
- Operating Temperature Range: -55°C to +125°C
- Storage Temperature Range: -55°C to +125°C
- Inductance Range: 0.2 to 22.0 nH (typical), tolerance up to ±0.3 nH or ±3%
- Q Factor: 22 to 60 at 100 MHz
- DC Resistance: 0.09 to 3.15 mΩ
- Rated Current: 50 to 1000 mA depending on model
- RoHS and Halogen-Free: Yes
- Package quantity: 10,000 pieces per reel
- Material: Ceramic and conductive materials for high-frequency stability
Buy the TDK Series MLG1005S High Frequency Inductor: MLG1005S0N6CT000
Purchase the TDK Series MLG1005S ceramic inductor online now to ensure your high-frequency circuits perform optimally. Designed for mobile communication, Bluetooth, Wi-LAN, and RF modules, this compact component offers excellent electrical stability, low ESR, and high Q-factor. RoHS compliant and halogen-free, it guarantees safety and environmental standards. Perfect for portable electronics, tuners, and RF amplifiers, this reliable inductor simplifies your design process. Buy online today to secure quick delivery of a proven high-frequency component for your demanding RF applications.
Order your TDK Series MLG1005S ceramic high-frequency inductor today and enhance your RF modules with reliable, compact, and high-performance components.
Frequently Asked Questions
Where can I buy TDK Corporation MLG1005S0N6CT000?
You can click on the BUY or RFQ button to purchase MLG1005S0N6CT000 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part MLG1005S0N6CT000?
You can download the MLG1005S0N6CT000 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of MLG1005S0N6CT000?
TDK Corporation
