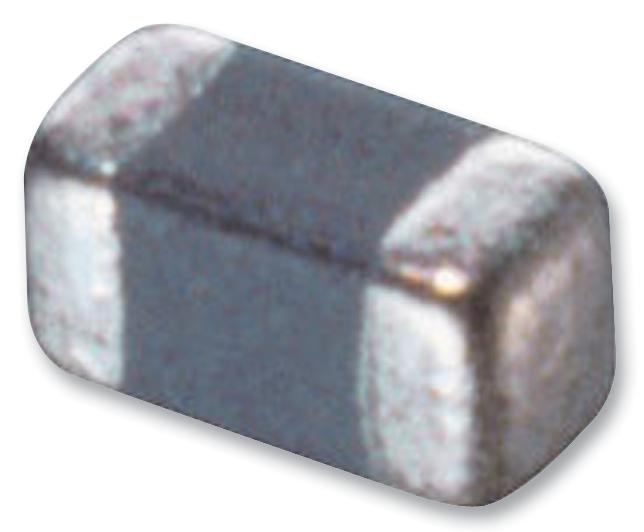

TDK Corporation MMZ0603AFY560VT000 High-frequency Noise Filter
The MMZ0603-V type chip bead is a compact, high-impedance noise filter designed for high-frequency signal lines, especially in wireless communication devices like smartphones, tablets, and industrial equipment. Operating across -55°C to +125°C, it effectively reduces GHz noise interference, including LTE and Wi-Fi signals. Its compact 0603 size allows space savings in device design, ensuring high communication sensitivity. Suitable for mobile, household, and industrial applications, it improves signal integrity and minimizes high-frequency noise effects in various electronic systems.
TDK Corporation MMZ0603AFY560VT000 High-frequency Noise Filter Specifications:
- Size: 0603 (1.6 x 0.8 mm)
- Impedance at 100MHz: 56 Ω ±25%
- Impedance at 1GHz: 40 Ω ±25%
- Impedance at 5.0GHz: 28 Ω ±25%
- Rated Current: 2.2 mA
- Insertion Loss: -23 dB at 25GHz (reference value)
- Operating Temperature Range: -55°C to +125°C
- Frequency Range: up to 6 GHz
- Material: High impedance ceramic composite
- Packaging: Reels with 1500 units per reel
- Dimensions: 1.6 mm x 0.8 mm x 0.8 mm
- Application: Noise filtering for LTE, Wi-Fi, high-speed communication
- Impedance characteristics designed for GHz bands, reducing high-frequency noise interference
Buy the EMC Components TDK – Reliable Noise Suppressor for Industrial Applications
Enhance your electronic devices with the high-impedance noise reduction chip bead designed for GHz signal lines. The TDK MMZ0603AFY560VT000 ensures superior noise filtering against LTE, Wi-Fi, and high-frequency electromagnetic interference, improving communication sensitivity and signal clarity. Its compact 0603 size fits easily into space-constrained designs, providing space savings without compromising performance. Operating reliably from -55°C to +125°C, this component suits mobile, household, and industrial applications, making it an essential choice for signal integrity and electromagnetic compatibility in modern electronics.
Get TDK MMZ0603AFY560VT000 today—built for precision and long-lasting durability in high-frequency noise reduction.
Frequently Asked Questions
Where can I buy TDK Corporation MMZ0603AFY560VT000?
You can click on the BUY or RFQ button to purchase MMZ0603AFY560VT000 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part MMZ0603AFY560VT000?
You can download the MMZ0603AFY560VT000 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of MMZ0603AFY560VT000?
TDK Corporation
