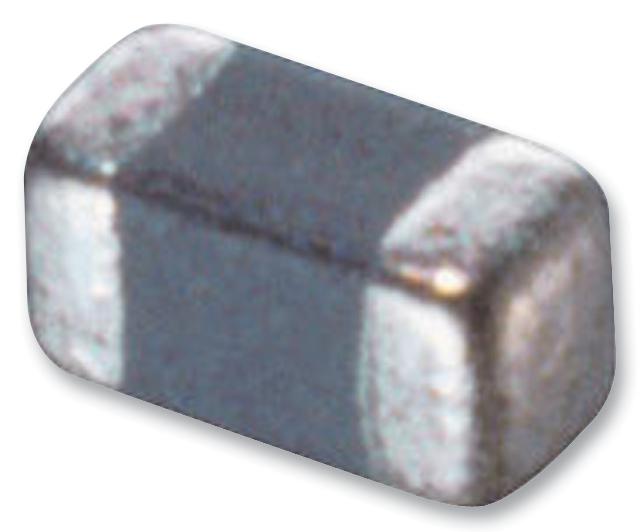

TDK Corporation MMZ1005A102ET000 Chip Bead
The MMZ1005A102ET000 is a high-frequency chip bead designed for noise countermeasures in general and high-speed signal lines. It features increased Self-Resonant Frequency (SRF) in GHz bands, high impedance at GHz frequencies, and offers various material options for wide-ranging applications including mobile devices, PCs, household appliances, and industrial equipment. Operating from -55°C to +125°C, it ensures reliable performance in diverse environments, effectively suppressing noise and maintaining signal integrity for modern electronic systems.
TDK Corporation MMZ1005A102ET000 Chip Bead Specifications:
- Dimensions: 2.02 mm x 1.05 mm x 0.8 mm
- Impedance at 100MHz: 600 Ω ±25%
- Impedance at 1GHz: 1000 Ω ±25%
- Rated Current: 0.65 A
- Operating Temperature Range: -55°C to +125°C
- Material Options: 4 different types for wide frequency performance
- Packaging Style: Taped, 10 pieces per reel
- Weight: 41 mg
- Soldering Profile: Peak temperature 250-260°C, 230°C reflow, natural cooling
- Land Pattern: 1.15 mm x 0.8 mm, with recommended reflow conditions
- Application: Noise suppression in mobile devices, electronics modules, household appliances, industrial equipment
Buy the TDK Series MMZ Chip Beads: MMZ1005A102ET000
Enhance your electronic designs with the TDK MMZ1005A102ET000 chip bead, offering superior high-frequency noise filtering and high impedance at GHz bands. Suitable for mobile devices, PCs, household appliances, and industrial equipment, this component ensures signal clarity and system stability across a wide temperature range from -55°C to +125°C. Easy to incorporate into your assembly with tape packaging and recommended reflow profile, it delivers reliable performance for high-speed and general signal lines, improving device performance and reducing electromagnetic interference.
Buy TDK MMZ1005A102ET000 chip bead now and experience unmatched noise suppression and signal integrity for your electronic projects.
Frequently Asked Questions
Where can I buy TDK Corporation MMZ1005A102ET000?
You can click on the BUY or RFQ button to purchase MMZ1005A102ET000 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part MMZ1005A102ET000?
You can download the MMZ1005A102ET000 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of MMZ1005A102ET000?
TDK Corporation
