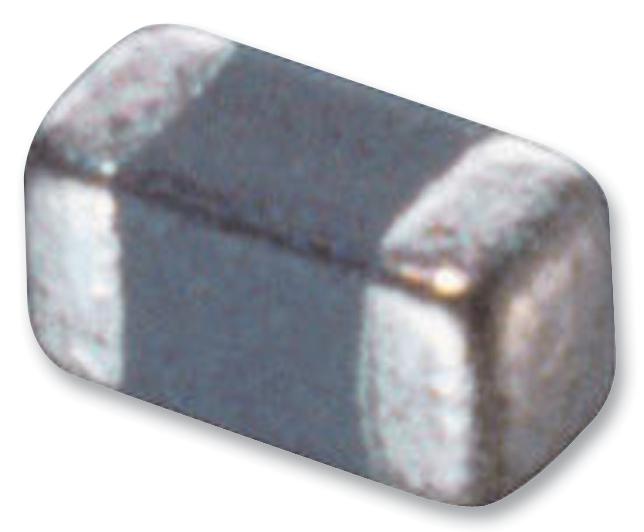

TDK Corporation MMZ1005AFZ750VT000 High Frequency Chip Bead
The MMZ1005AFZ750VT000 is a high impedance chip bead designed for high-frequency noise reduction in signal lines. It effectively suppresses noise interfering at GHz bands, including LTE and Wi-Fi signals, by providing high impedance between 0.7GHz and 3GHz. With a compact 1005 size, it is suitable for mobile devices, PCs, household appliances, and industrial equipment. Operating over temperatures from -55°C to +125°C, it ensures reliable performance in various electronic applications, reducing high-frequency noise to improve communication sensitivity and overall system stability.
TDK Corporation MMZ1005AFZ750VT000 High Frequency Chip Bead Specifications:
- Size: 1005
- Impedance at 100MHz: 75 +25% Ω
- Impedance at 1GHz: 500 ±40% Ω
- Impedance at 2.5GHz: 1400 ±40% Ω
- DC Resistance: 0.90 Ω
- Rated Current: 250 mA
- Operating Temperature Range: -55°C to +125°C
- Material: Special high impedance ferrite
- Frequency Range for High Impedance: 0.7GHz to 3GHz
- Dimensions: Length 1.0 mm, Width 0.5 mm, Thickness 0.5 mm
- Package: Tape and reel, 1500 pcs per reel
- Certification: RoHS compliant
- Soldering Profile: Peak at 250-260°C, reflow process recommended
- Storage Conditions: 5°C to 40°C, 10-75% RH, within 12 months
Buy the Buy EMC Components TDK Chip Beads Part Number MMZ1005AFZ750VT000 Online
Looking to improve your device’s noise immunity? Purchase the TDK MMZ1005AFZ750VT000 high impedance chip bead online. Designed for high-frequency noise suppression in signal lines from 0.7GHz to 3GHz, it boosts wireless communication sensitivity and reduces interference in smartphones, PCs, and industrial equipment. Its compact 1005 size, wide operating temperature range of -55°C to +125°C, and RoHS compliance make it suitable for diverse applications. Order now and optimize your system’s reliability with this advanced noise reduction component.
Order your EMC Components TDK MMZ1005AFZ750VT000 high-frequency noise filter today and enhance your wireless and industrial device performance.
Frequently Asked Questions
Where can I buy TDK Corporation MMZ1005AFZ750VT000?
You can click on the BUY or RFQ button to purchase MMZ1005AFZ750VT000 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part MMZ1005AFZ750VT000?
You can download the MMZ1005AFZ750VT000 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of MMZ1005AFZ750VT000?
TDK Corporation
