TDK Corporation MMZ1608S102ATA00 Chip Bead
The MMZ1608S102A is a high-performance chip bead for signal line noise suppression, suitable for digital signals at high frequencies. It features a monolithic, lead-free, RoHS-compliant design with excellent impedance characteristics across wide frequency ranges, typically from 10 MHz to 1 GHz, depending on model. Its compact size and stable performance make it ideal for electronic devices like PCs, TVs, and automotive systems. The component supports reflow soldering, ensuring reliable assembly. Its low DC resistance minimizes power loss, contributing to efficient signal integrity and reduced electromagnetic interference in sensitive electronic circuits.
TDK Corporation MMZ1608S102ATA00 Chip Bead Specifications:
- Size: 1.6 mm x 0.8 mm x 0.6 mm
- Material: RoHS-compliant ceramic
- Impedance at 100 MHz: 120Ω ± 25%
- DC Resistance: 0.15Ω max.
- Temperature Range: -55°C to +125°C
- Operating Frequency Range: 10 MHz to 1 GHz
- Suitable for reflow soldering at 250-260°C for up to 10s
- Lead-free and RoHS compliant
- Nominal Impedance: 120Ω at 100MHz
- Designed for noise filtering in signal lines of electronics products
- Packaging: Taping, 4000 pieces per reel
- Application: Noise suppression in cellular phones, PCs, TVs, automotive systems, and digital devices
- Mechanical: Standard SMD package for automated assembly and high-density PCB mounting

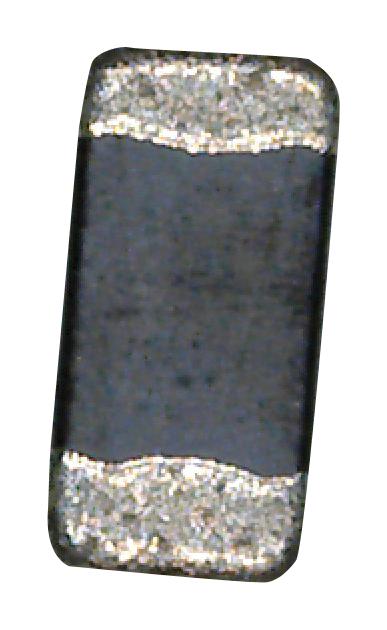

Buy the Buy TDK Chip Beads Part Number MMZ1608S102A Online
Enhance your electronic design with the TDK MMZ1608S102A chip bead, offering superior noise suppression and stable impedance at high frequencies. Its compact, lead-free design supports reliable reflow soldering, ensuring seamless integration into your PCB assembly line. Perfect for digital signal lines in PCs, TVs, automotive electronics, and communication devices, this component ensures minimal power loss and maximum signal integrity. Optimize your circuit performance today by purchasing online for fast delivery and guaranteed quality from authorized vendors.
Buy TDK MMZ1608S102A now and experience unmatched reliability and high-frequency noise filtering in your electronic projects.
Frequently Asked Questions
Where can I buy TDK Corporation MMZ1608S102ATA00?
You can click on the BUY or RFQ button to purchase MMZ1608S102ATA00 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part MMZ1608S102ATA00?
You can download the MMZ1608S102ATA00 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of MMZ1608S102ATA00?
TDK Corporation
