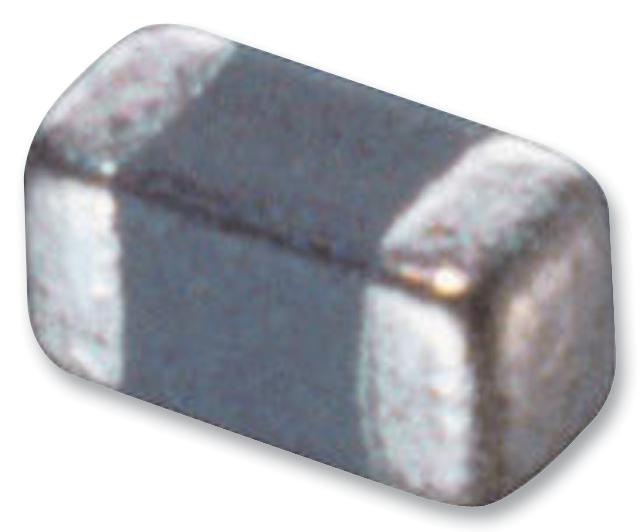

TDK Corporation MPZ0603S800HT000 Chip Bead
The MPZ0603S800HT000 is a high-performance chip bead designed for power line noise reduction in electronic devices. It offers a 50% reduction in resistance compared to standard series, enabling improved rated current capacity and circuit efficiency. Operating within -55°C to +125°C, it is suitable for mobile devices, PCs, household appliances, smart grids, and industrial equipment. Its small 0603 size allows for compact design, with excellent high-frequency noise filtering characteristics, low DC resistance, and robust durability suitable for demanding electronic applications.
TDK Corporation MPZ0603S800HT000 Chip Bead Specifications:
- Dimensions: 0.34 mm x 0.83 mm
- Operating Temperature Range: -55°C to +125°C
- Impedance at 100MHz: 22 Ω (±25%), 33 Ω (±25%), 80 Ω (±25%), 121 Ω (±25%)
- DC Resistance: 0.036 Ω, 0.050 Ω, 0.095 Ω, 0.130 Ω
- Rated Current: 1900 mA, 1600 mA, 1200 mA, 1000 mA
- Package: Reels with 15,000 pcs, Tape: 2.0 mm pitch
- Material: Ferrite core
- Temperature Range: -55°C to +125°C
- Compliance: RoHS, Reach
- Mounting Style: SMD (Surface Mount Device)
- Frequency Response: Up to 10 GHz with stable impedance
Buy the EMC Components &TDK Series MPZ Chip Beads: MPZ0603S800HT000
Discover the EMC Components &TDK MPZ0603S800HT000 chip bead, optimized for efficient power line noise filtering. Its low DC resistance and broad temperature stability make it ideal for mobile devices, PCs, and industrial equipment. Designed with a compact 0603 size, it ensures reliable high-frequency filtering and enhanced circuit performance. Perfect for designers seeking robust, space-saving solutions that improve noise suppression and power efficiency. Purchase online today to enhance your electronic applications with proven reliability and superior noise filtering performance.
Get EMC Components &TDK MPZ0603S800HT000 today—built for noise reduction, high current capacity, and durability in compact electronic applications.
Frequently Asked Questions
Where can I buy TDK Corporation MPZ0603S800HT000?
You can click on the BUY or RFQ button to purchase MPZ0603S800HT000 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part MPZ0603S800HT000?
You can download the MPZ0603S800HT000 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of MPZ0603S800HT000?
TDK Corporation
