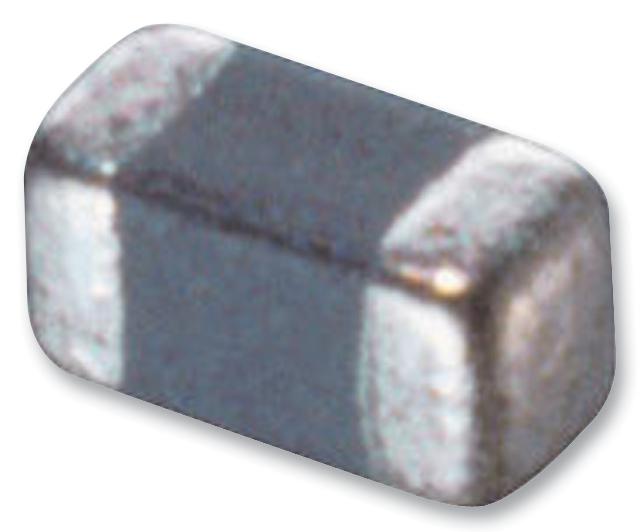

TDK Corporation MPZ1005S221HT000 Noise Filter Chip
The MPZ1005-H series chip beads are designed for noise reduction in power lines for various electronic devices. These low resistance beads, with impedance values from 33Ω to 220Ω at 100MHz, offer over 30% lower resistance than standard series. Compact 1.0x0.5x0.5 mm size allows easy downsizing, suitable for mobile devices, PCs, household appliances, and industrial equipment. Operating across -55°C to +125°C, they ensure efficient EMI filtering and reliable performance in harsh environments, making them ideal for maintaining signal integrity and reducing electromagnetic interference in modern electronic circuits.
TDK Corporation MPZ1005S221HT000 Noise Filter Chip Specifications:
- Impedance at 100MHz: 33Ω to 220Ω
- DC Resistance: 0.022Ω to 0.095Ω
- Rated Current: 3.0A to 1.6A
- Size: 1.0x0.5x0.5 mm
- Material: Not specified, standard chip bead construction
- Operating Temperature Range: -55°C to +125°C
- Tolerance: ±25%
- Packaging: Reels of 10 pcs
- Soldering Temp: 250°C to 260°C for 10-60s
- Application: EMI filtering, noise suppression for power lines
Buy the EMC Components Series MPZ Noise Filter: MPZ1005S221HT000
Experience reliable electromagnetic interference filtering with the Noise Filter Chip designed for power line noise reduction in mobile devices, PCs, and industrial equipment. These compact, low resistance beads operate efficiently across a wide temperature range from -55°C to +125°C. With impedance ratings from 33Ω to 220Ω at 100MHz and low DC resistance, they ensure high performance in EMI suppression and circuit protection. Easy to install, durable, and suitable for miniature circuit boards, they deliver optimal noise mitigation for modern electronic systems.
Get EMC Components MPZ1005S221HT000 today—built for precision and long-lasting durability in noise suppression applications.
Frequently Asked Questions
Where can I buy TDK Corporation MPZ1005S221HT000?
You can click on the BUY or RFQ button to purchase MPZ1005S221HT000 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part MPZ1005S221HT000?
You can download the MPZ1005S221HT000 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of MPZ1005S221HT000?
TDK Corporation
