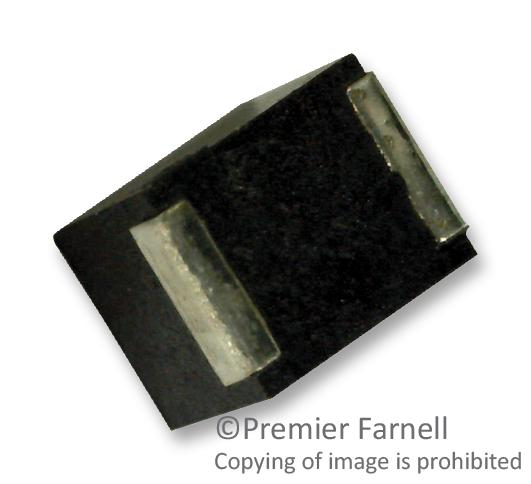

TDK Corporation NLV25T015JEF Wound Ferrite Inductor
The NLV series inductors are resin-molded wound ferrite components designed for standard circuits, offering a wide inductance range from 0.01 to 470 microhenries. Suitable for applications like smart meters, AV equipment, communication infrastructure, and vehicle accessories, these inductors feature excellent temperature stability and RoHS compliance. They come in tape packaging with dimensions optimized for surface mounting, supporting high-frequency performance and reliability in various electronic devices with operating temperatures from -40°C to +105°C. Their robust construction ensures durability and consistent electromagnetic characteristics.
TDK Corporation NLV25T015JEF Wound Ferrite Inductor Specifications:
- Inductance range: 0.01 to 470 µH
- Tolerance: ±5% or ±25%
- Operating temperature: -40°C to +105°C
- Storage temperature: -40°C to +105°C
- Package quantity: 2000 pieces/reel
- Package weight: NLV25 - 25 mg, NLV32 - 50 mg
- RoHS compliant, halogen-free
- Package style: Taping
- Dimensions NLV25: 2.3mm x 2.7mm, NLV32: 2.8mm x 3.5mm
- Self-resonant frequency: Up to 2500 MHz depending on inductance
- DC resistance: Varies with inductance, typically in the range of 0.13 to 1.2 Ω
- Suitable for surface mounting on PCBs, supporting high-frequency applications
- Designed to meet strict L tolerance and temperature characteristics
- Preheat and reflow compatible with standard reflow soldering profiles
- Durable resin mold construction ensures reliability in various environments
Buy the Buy TDK NLV Series Inductor Part Number NLV25T015JEF Online
Enhance your electronic projects with the high-quality TDK NLV series inductors, offering excellent temperature stability, RoHS compliance, and optimal dimensions for surface mounting. Perfect for telecom, AV, and automotive applications, these inductors ensure reliable performance with inductance from 0.01 to 470 µH. Their durable resin mold construction provides long-lasting durability, supporting high-frequency operation and low DC resistance. Purchase online today to benefit from fast delivery and dependable, high-performance magnetic components tailored for modern electronics and reliable circuit design.
Get TDK NLV25T015JEF today—designed for stable inductance and reliable electrical performance in automotive, communication, and industrial electronics.
Frequently Asked Questions
Where can I buy TDK Corporation NLV25T015JEF?
You can click on the BUY or RFQ button to purchase NLV25T015JEF from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part NLV25T015JEF?
You can download the NLV25T015JEF datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of NLV25T015JEF?
TDK Corporation
