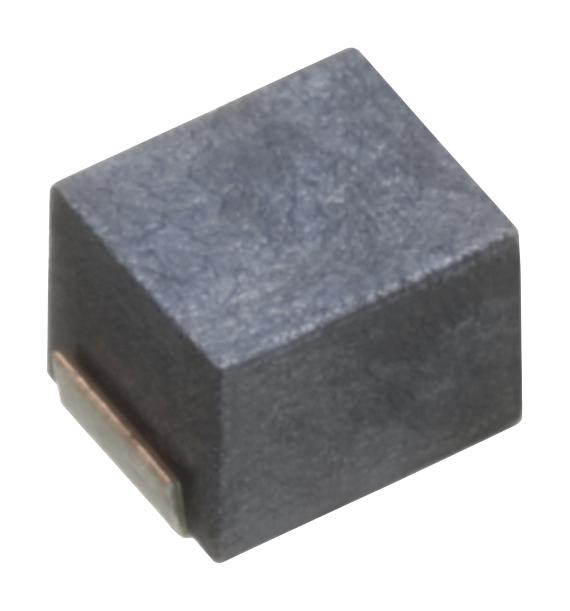

TDK Corporation NLV25T1R0JEFD Wound Ferrite Inductor
The NLV25-EFD series are resin-molded, wound ferrite inductors designed for automotive and electronic circuit applications. These inductors feature excellent temperature stability, RoHS compliance, and are compatible with lead-free soldering processes. Suitable for use in vehicle accessories such as car navigation, audio systems, and general electronic devices, they offer a reliable magnetic core with precise inductance values, wrapped in a protective resin mold. Their compact size and high performance make them ideal for space-constrained, high-reliability circuits.
TDK Corporation NLV25T1R0JEFD Wound Ferrite Inductor Specifications:
- Series Name: NLV25-EFD
- Dimensions: 2.5x2.0x1.8 mm
- Operating Temperature Range: -40°C to +105°C
- Storage Temperature Range: -40°C to +105°C
- Package Quantity: 2000 pieces/reel
- Weight: 25 mg
- RoHS Directive Compliant: Yes
- Material: Ferrite core with resin mold
- Inductance Tolerance: ±5% (E12 series)
- Self-Resonant Frequency: 15-100 MHz (varies by inductance)
- DC Resistance: varies depending on inductance value
- Rated Current: varies by model, typically around 180-530 mA
- Suitability: Automotive, filter circuits, vehicle accessories
- Mounting: Surface-mount type with recommended land pattern
- Soldering: Compatible with lead-free reflow soldering
- Standards: RoHS compliant, halogen-free
Buy the TDK Series NLV25 EFD: Automotive Wound Ferrite Inductor
Enhance your automotive and electronic circuits with our high-quality wound ferrite inductors from the NLV25-EFD series. These inductors are RoHS compliant, feature excellent temperature characteristics, and are compatible with lead-free soldering. Ideal for vehicle accessories such as navigation systems and audio devices, they provide stable inductance in compact sizes, ensuring reliable performance in space-constrained environments. Purchase online today to ensure your project benefits from proven quality, high reliability, and easy installation for all your circuit filtering needs.
Buy TDk Series NLV25-EFD inductors now and experience reliable performance for automotive and electronic circuit applications with high temperature stability.
Frequently Asked Questions
Where can I buy TDK Corporation NLV25T1R0JEFD?
You can click on the BUY or RFQ button to purchase NLV25T1R0JEFD from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part NLV25T1R0JEFD?
You can download the NLV25T1R0JEFD datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of NLV25T1R0JEFD?
TDK Corporation
