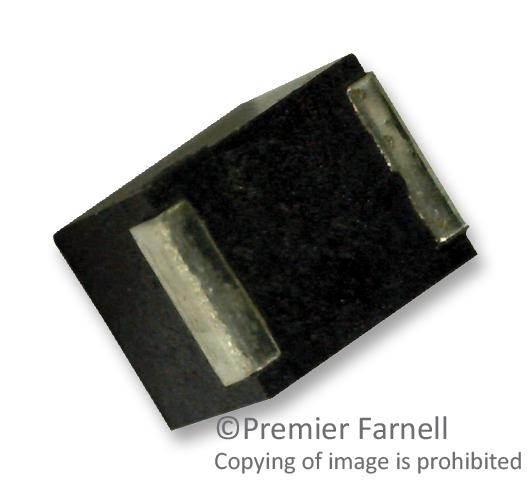

TDK Corporation NLV25T2R2JEF Ferrite Inductor
The NLV series consists of resin-molded, wound ferrite inductors designed for standard circuits, ranging from 0.01 to 470 microhenries. These inductors are RoHS-compliant, halogen-free, and have excellent inductance temperature characteristics, making them suitable for filter circuits in various applications such as communication infrastructure, AV equipment, and vehicle accessories. They offer a wide lineup with tight tolerance options (+5%), high self-resonant frequencies, and are packaged on tapes suitable for automated mounting, ensuring reliability in both general and specialized electronic systems.
TDK Corporation NLV25T2R2JEF Ferrite Inductor Specifications:
- Inductance Range: 0.01 to 470μH
- Tolerance: ±5%
- Operating Temperature Range: -40°C to +105°C
- Storage Temperature Range: -40°C to +105°C
- Packaging: Reel with 2000 pieces, individual weight 50 mg for NLV32, 25 mg for NLV25
- RoHS compliant and halogen-free (Cl and Br content less than 900ppm, total less than 1500ppm)
- Self-Resonant Frequency: up to 2.5 MHz depending on inductance value
- DC Resistance: Ranges from approximately 0.13Ω to 0.75Ω for NLV32 series; lower for NLV25 series
- Rated Current: Based on inductance change rate (10%) or temperature rise (20°C self heating)
- Reflow soldering profile: preheating at 150°C, peak at 255°C for 10 sec max
- Package Quantity: 2000 units per reel
- Size: NLV25 - 2.3 mm x 2.7 mm; NLV32 - 2.8 mm x 3.5 mm
- Material: Wound ferrite core, resin-molded construction
- Features: Compatible with lead-free solders, suitable for filter and noise reduction applications
Buy the TDK Series NLV Ferrite Inductor: NLV25T2R2JEF
Purchase the TDK NLV25T2R2JEF ferrite inductor online today and enjoy superior noise filtering and reliable performance for your electronic circuits. Designed with RoHS compliance and halogen-free materials, this inductors' wide inductance range from 0.01μH to 470μH ensures optimal circuit filtering, whether in AV equipment, communication infrastructure, or vehicle electronics. The NLV series features excellent temperature stability, high self-resonant frequencies, and compact tape packaging for automated mounting. Secure your supply and enhance your device durability by buying online now for quick delivery and trusted quality.
Get TDK NLV25T2R2JEF today—built for exceptional filter performance and reliable operation in communication and industrial electronics.
Frequently Asked Questions
Where can I buy TDK Corporation NLV25T2R2JEF?
You can click on the BUY or RFQ button to purchase NLV25T2R2JEF from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part NLV25T2R2JEF?
You can download the NLV25T2R2JEF datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of NLV25T2R2JEF?
TDK Corporation
