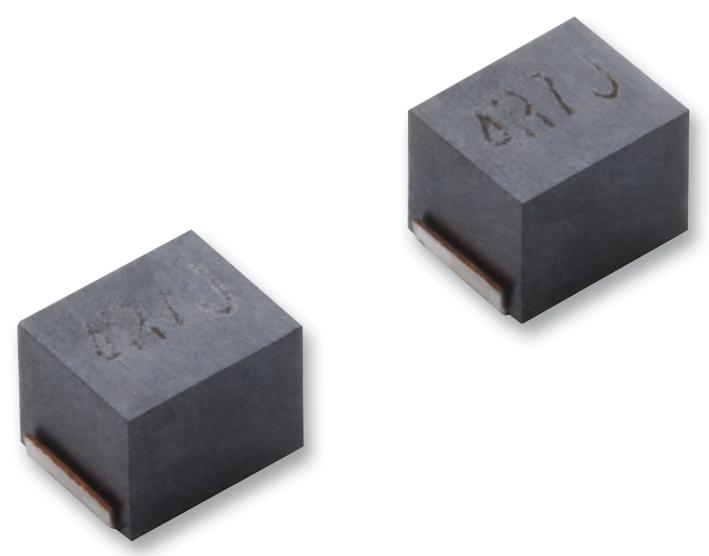

TDK Corporation NLV25TR68JPF Wound Ferrite Inductor
The inductor is a resin-molded wound ferrite component from the NL series, suitable for standard circuits such as filter circuits, communication infrastructure, smart meters, AV equipment, and industrial applications. It has excellent inductance temperature characteristics and is compatible with JIS/EIA dimensions. Operating within -55°C to +105°C, it comes in reel packaging with 500 pieces, weighs approximately 180 mg, and features wide inductance options from 1uH to 10,000uH, making it ideal for high-frequency and power applications.
TDK Corporation NLV25TR68JPF Wound Ferrite Inductor Specifications:
- Series: NL
- Type: NL565050
- Inductance Range: 1uH to 10,000uH
- Tolerance: ±5%
- Operating Temperature: -55°C to +105°C
- Storage Temperature: -55°C to +105°C
- Package Quantity: 400 pieces/reel
- Weight: Approximately 380 mg
- Dimensions: 5.6 x 5.0 x 5.0 mm
- Packaging Style: Reel
- Material: Resin mold wound ferrite
- Rated Current: 20mA to 150mA depending on inductance
- Self-resonant Frequency: Up to 8753C measurement equipment compatibility
- Compliance: RoHS Directive
Buy the TDK NL565050 – Reliable Inductor for Industrial Applications
Purchase the TDK NL565050 inductor online today—designed for high performance in industrial, communication, and smart meter applications. Featuring excellent temperature stability, a wide inductance range from 1uH to 10,000uH, and RoHS compliance, this resin-molded wound ferrite inductor ensures reliable operation in demanding environments. Compact and lightweight at approximately 380 mg, it is perfect for power circuits, filters, and high-frequency applications. Easy to handle, with reel packaging for efficient manufacturing, ensuring you meet your project specifications efficiently.
Get TDK NL565050 today—built for precision and long-lasting durability in your electronic designs.
Frequently Asked Questions
Where can I buy TDK Corporation NLV25TR68JPF?
You can click on the BUY or RFQ button to purchase NLV25TR68JPF from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part NLV25TR68JPF?
You can download the NLV25TR68JPF datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of NLV25TR68JPF?
TDK Corporation
