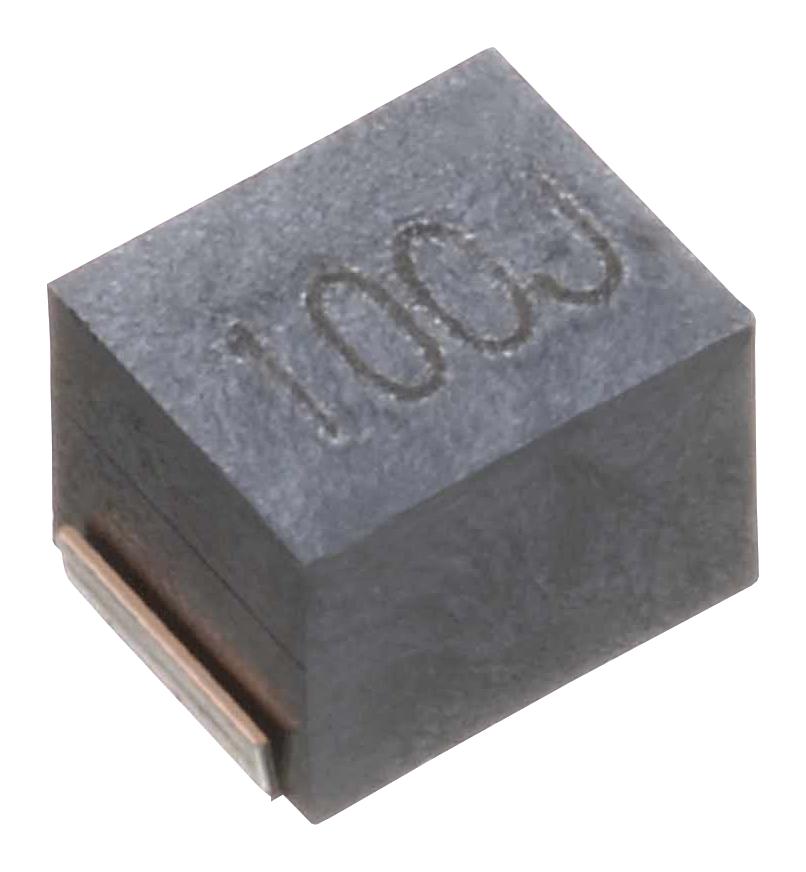

TDK Corporation NLV32TR22JEF Ferrite Inductor
The NLV32-EF series inductors are resin-molded wound ferrite components designed for standard circuits. Compatible with lead-free solders, these inductors feature a wide inductance range, excellent temperature characteristics, and RoHS compliance. They are ideal for applications such as smart meters, AV equipment, communication infrastructure, and industrial electronics. The series provides reliable performance with precise inductance tolerances, high self-resonant frequencies, and compact dimensions, making them suitable for modern electronic device designs requiring stable inductance and thermal stability.
TDK Corporation NLV32TR22JEF Ferrite Inductor Specifications:
- Dimensions: 3.2x2.5x22 mm
- Inductance Range: 0.01 µH to 47 µH
- Tolerance: ±5% or ±25%
- Operating Temperature Range: -40°C to +105°C
- Storage Temperature Range: -40°C to +105°C
- RoHS Compliance: Yes
- Material: Wound ferrite core with resin mold
- Self-Resonant Frequency: Up to 7.8 MHz
- DC Resistance: As specified for each model, min. 0.13 Ω
- Rated Current: 40-450 mA depending on model
- Package: Taping, 2000 pieces/reel
- Note: Suitable for lead-free soldering, RoHS compliant, halogen-free options available
Buy the TDK Series NLV32 Ferrite Inductor: NLV32TR22JEF
Order the TDK NLV32TR22JEF ferrite inductor online today for reliable performance in your electronic designs. Designed for standard circuits, this high-quality component offers excellent temperature stability, low DC resistance, and RoHS compliance. Its compact size and precise inductance make it suitable for smart meters, AV equipment, communication infrastructure, and industrial devices. Benefit from fast delivery, competitive pricing, and guaranteed authenticity. Enhance your circuit reliability by choosing this durable, lead-free solder-compatible inductor for your project needs.
Get TDK NLV32TR22JEF today—built for precision and long-lasting durability in communication and industrial electronics.
Frequently Asked Questions
Where can I buy TDK Corporation NLV32TR22JEF?
You can click on the BUY or RFQ button to purchase NLV32TR22JEF from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part NLV32TR22JEF?
You can download the NLV32TR22JEF datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of NLV32TR22JEF?
TDK Corporation
