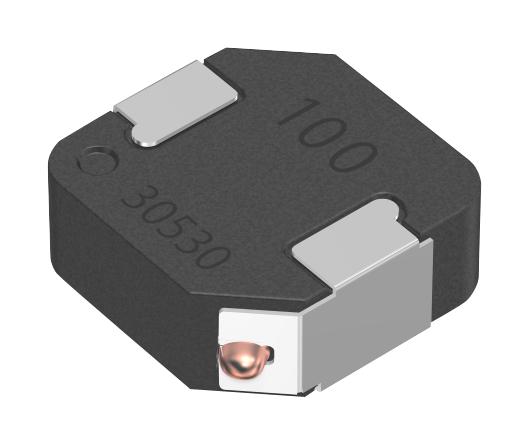

TDK Corporation SPM10040T6R8MHZ Automotive Power Inductor
The SPM10040-HZ series is a magnetic shield wound inductor designed for automotive power circuits, offering high current capacity, low resistance, and compact form. Constructed with metallic magnetic material, it ensures excellent thermal stability from -40°C to +125°C, including self-temperature rise, and features low hum noise due to its integrated molded coil. Suitable for automotive electronics such as navigation, audio, power steering, and lighting, it complies with AEC-Q200 standards, ensuring durability in harsh environments for reliable vehicle electronic applications.
TDK Corporation SPM10040T6R8MHZ Automotive Power Inductor Specifications:
- Type: Magnetic shield wound inductor for power circuits
- Operating Temperature Range: -40°C to +125°C (including self-temperature rise)
- Material: Metallic magnetic material with integrated molded coil
- Measurement DC Resistance: varies by model, e.g., 0.47 Ω, 0.68 Ω, 1.0 Ω, 1.5 Ω, up to 22 Ω
- Rated Current: up to 700 mA depending on model
- Frequency Range: 100 kHz, typical inductance from 0.47 μH to 22 μH
- Compliance: AEC-Q200 automotive standard
- Packaging: Reels of 500 pieces, suitable for automated assembly
- Dimensions: Approximate size in mm: 10.5 x 11.6 x 4.2, with recommended land pattern for PCB mounting
- Application: Automotive navigation, car audio, electronic power steering, headlights
- Storage Temperature Range: 5°C to 40°C, humidity 10-75% RH
- Soldering: Reflow profile with preheating, peak temperature 260°C, careful handling recommended
- Weight: Around 2.139 grams per unit
Buy the ACME Series Automotive Power Inductors: SPM10040T6R8MHZ
Enhance your automotive electronic systems with the reliable SPM10040T6R8MHZ power inductor, designed for high current and thermal stability. Constructed with metallic magnetic material and compliant with strict AEC-Q200 standards, it ensures durable performance in harsh environments. Its compact size and low resistance make it ideal for automotive navigation, infotainment, and lighting systems. Easily integrated into your PCB with recommended land patterns, it offers excellent electromagnetic compatibility, low noise, and long-lasting operation. Order online now for fast delivery and guaranteed quality tailored for automotive applications.
Order your ACME Series automotive power inductor SPM10040T6R8MHZ today and ensure reliable power regulation in your vehicle electronics with top-grade quality.
Frequently Asked Questions
Where can I buy TDK Corporation SPM10040T6R8MHZ?
You can click on the BUY or RFQ button to purchase SPM10040T6R8MHZ from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part SPM10040T6R8MHZ?
You can download the SPM10040T6R8MHZ datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of SPM10040T6R8MHZ?
TDK Corporation
