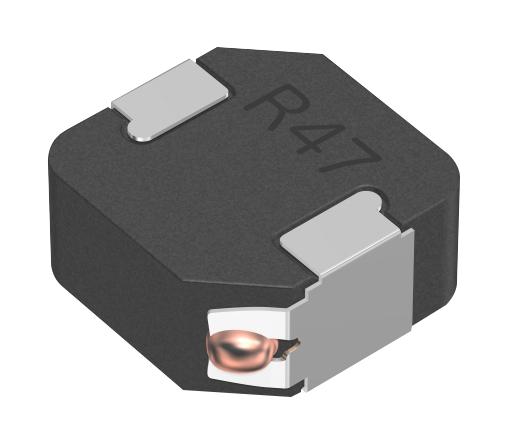

TDK Corporation SPM10054T1R5MHZ Automotive Power Inductor
The SPM10054-HZ series inductor is a magnetic shield wound component designed for automotive power circuits, featuring a metallic magnetic material and integrated molded coil for low noise and high current capacity. Suitable for automotive infotainment, headlights, electronic power steering, and navigation systems, it offers operation from -40 to +125°C, low DC resistance, and stable inductance with temperature. Compliant with AEC-Q200 standards, its compact design ensures reliable performance in high-temperature environments, reducing hum noise compared to ferrite cores and enabling efficient circuit operation.
TDK Corporation SPM10054T1R5MHZ Automotive Power Inductor Specifications:
- Inductance: 0.47 µH, 0.68 µH, 1.0 µH, 1.5 µH, 2.5 µH, 3.3 µH, 4.7 µH, 6.8 µH, 10.0 µH, 15.0 µH, 22.0 µH, 33.0 µH, 47.0 µH, 68.0 µH
- DC Resistance: value varies with inductance (e.g., 0.47 µH - 1.62 mΩ, 0.68 µH - 2.09 mΩ, etc.)
- Rated Current: depends on inductance, e.g., 34.9-86 mA (Isat), 36.0-86 mA (Temp)
- Temperature Range: -40°C to +125°C (including self-temperature rise)
- Package Quantity: 500 pcs per reel
- Dimensions: Length approximately 10.5 mm, width 10.5 mm, height varies per inductance, recommended land pattern 3.30 mm
- Material: Metallic magnetic material with integrated molded coil
- Compliance: AEC-Q200 Automotive Grade
- Storage Temperature: -40°C to +125°C
Buy the Buy Automotive Magnetic Shield Inductor Part Number SPM10054T1R5MHZ Online
Enhance your automotive power circuits with the SPM10054T1R5MHZ inductor, offering excellent magnetic shielding, low resistance, and stable performance across a wide temperature range. Perfect for automotive infotainment systems, headlights, and electronic power steering, this component provides high current capacity and minimal noise, ensuring your device operates smoothly and reliably. Purchase online today to benefit from rapid delivery, genuine quality, and proven durability tailored for automotive electronics. Improve your circuit designs with this high-quality inductor now.
Get SPM10054T1R5MHZ automotive magnetic shield inductor today—designed for high current, low noise, and reliable power circuit performance.
Frequently Asked Questions
Where can I buy TDK Corporation SPM10054T1R5MHZ?
You can click on the BUY or RFQ button to purchase SPM10054T1R5MHZ from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part SPM10054T1R5MHZ?
You can download the SPM10054T1R5MHZ datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of SPM10054T1R5MHZ?
TDK Corporation
