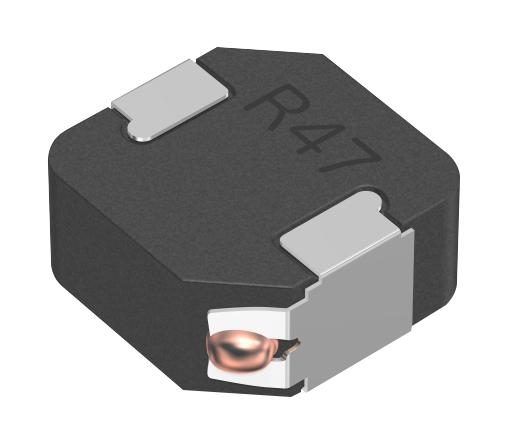

TDK Corporation SPM10054T680MHZ Automotive Power Inductor
The SPM10054-HZ series is a magnetic shield wound inductor designed for automotive power circuits. Made with metallic magnetic material, it offers high current capacity, low resistance, and compact size, ideal for automotive infotainment, power steering, headlights, and related equipment. It maintains stable inductance in high temperatures from -40 to +125°C, reducing hum noise compared to ferrite types. Compliant with AEC-Q200, it features integrated molded coils, ensuring reliability and durability in demanding automotive environments. Suitable for xEV applications, it provides excellent DC superimposition characteristics, making it a vital component for automotive electronic systems.
TDK Corporation SPM10054T680MHZ Automotive Power Inductor Specifications:
- Inductance range: 0.47 μH to 68 μH, tolerance: ±20%
- Rated current (Isat): 8.8 A to 36.0 A depending on model
- Operating temperature: -40°C to +125°C including self-temperature rise
- Material: Metallic magnetic with integrated molded coil
- Dimensions: Varying sizes with recommended land pattern 3.30 mm in width
- Storage temperature: -40°C to +125°C
- Package: Reel, quantity 500 pieces
- Compliance: AEC-Q200, RoHS compatible
- Frequency: Up to 100 kHz for inductance, 1 MHz for frequency characteristics
- Typical DC resistance: 0.47 mΩ to 721.2 mΩ, depending on model
Buy the ACME SPM10054T680MHZ – Reliable Automotive Power Inductor for Industrial Applications
Enhance your automotive electronic systems with our high-performance power inductor. Designed for reliability and efficiency, the SPM10054T680MHZ provides excellent inductance stability, high current handling, and durability in demanding environments. It’s ideal for power circuits in automotive infotainment, power steering, headlights, and more. With compliance to automotive standards, low noise, and compact size, this inductor ensures optimal performance and long-term operation. Purchase online today for fast delivery and trusted quality that boosts your automotive design projects.
Order your ACME Series SPM10054T680MHZ today and give your automotive electronics the dependable quality they deserve with high current capacity and stability.
Frequently Asked Questions
Where can I buy TDK Corporation SPM10054T680MHZ?
You can click on the BUY or RFQ button to purchase SPM10054T680MHZ from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part SPM10054T680MHZ?
You can download the SPM10054T680MHZ datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of SPM10054T680MHZ?
TDK Corporation
