TDK Corporation SPM3010T2R2MLR Power Inductor
The SPM3010-LR series is a magnetic shield wound inductor designed for power circuits, featuring a low-profile and high-current capacity. Made with metallic magnetic material and an integrated molded coil, it ensures low Rdc, stability in high temperatures, and reduced hum noise. Suitable for applications like tablets, notebooks, HDDs, servers, and VRMs, it offers excellent DC superimposition characteristics. Operating within -40 to +125°C, it combines compactness with high performance, making it ideal for modern electronic power management components.
TDK Corporation SPM3010T2R2MLR Power Inductor Specifications:
- Inductance: 2.2 μH (minimum 2.0 μH), 3.3 μH (minimum 3.0 μH), 4.7 μH (minimum 4.2 μH), 1.0 μH (minimum 0.9 μH), 0.47 μH (minimum 0.42 μH), 15 μH (minimum 14 μH), 22 μH (minimum 20 μH)
- DC Resistance: 27.8 mΩ at 0.47 μH, 60.9 mΩ at 1.0 μH, 118.6 mΩ at 1.5 μH, 166.0 mΩ at 2.2 μH, 218.5 mΩ at 3.3 μH, 374.6 mΩ at 4.7 μH
- Rated Current: 25.2 A at 0.47 μH, 55.3 A at 1.0 μH, 107.8 A at 1.5 μH, 150.9 A at 2.2 μH, 198.6 A at 3.3 μH, 340.5 A at 4.7 μH
- Max ISAT: 65 A at 0.47 μH, 46 A at 1.0 μH, 23 A at 1.5 μH, 26 A at 2.2 μH, 22 A at 3.3 μH, 18 A at 4.7 μH
- Temperature Range: -40°C to +125°C
- Dimensions: 3.02 mm (L) x 3.02 mm (W) x 1.2 mm (H), with recommended land pattern and reflow profile
- Packaging: 2000 pcs per reel, suitable for automated soldering, storage temp 5°C to 40°C, humidity 10-75%

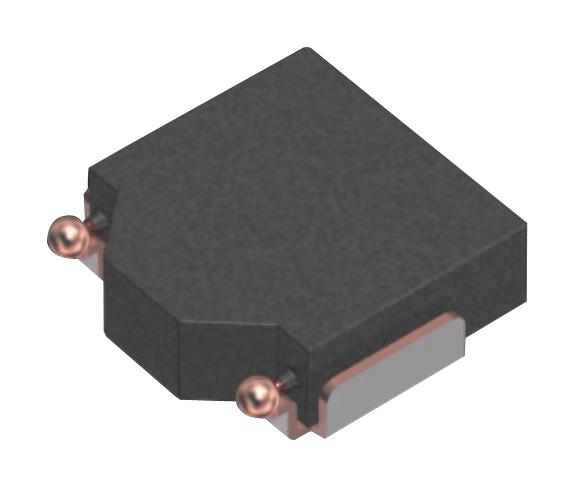

Buy the Yageo Series SPM3010 Power Inductor: SPM3010T2R2MLR
Experience high-performance power management with the Yageo Series SPM3010 inductors. Designed for compact electronic devices, these low-profile, high-current inductors deliver excellent stability, minimal noise, and reliable operation across a wide temperature range. Perfect for use in tablets, servers, and VRMs, they ensure efficient energy transfer and long-term durability. Available in a reel for easy automated assembly, you can buy online effortlessly and upgrade your power circuitry with confidence, knowing these inductors meet rigorous quality standards.
Order your Yageo Series SPM3010 power inductor today and give your electronic projects the reliable power performance they need.
Frequently Asked Questions
Where can I buy TDK Corporation SPM3010T2R2MLR?
You can click on the BUY or RFQ button to purchase SPM3010T2R2MLR from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part SPM3010T2R2MLR?
You can download the SPM3010T2R2MLR datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of SPM3010T2R2MLR?
TDK Corporation
