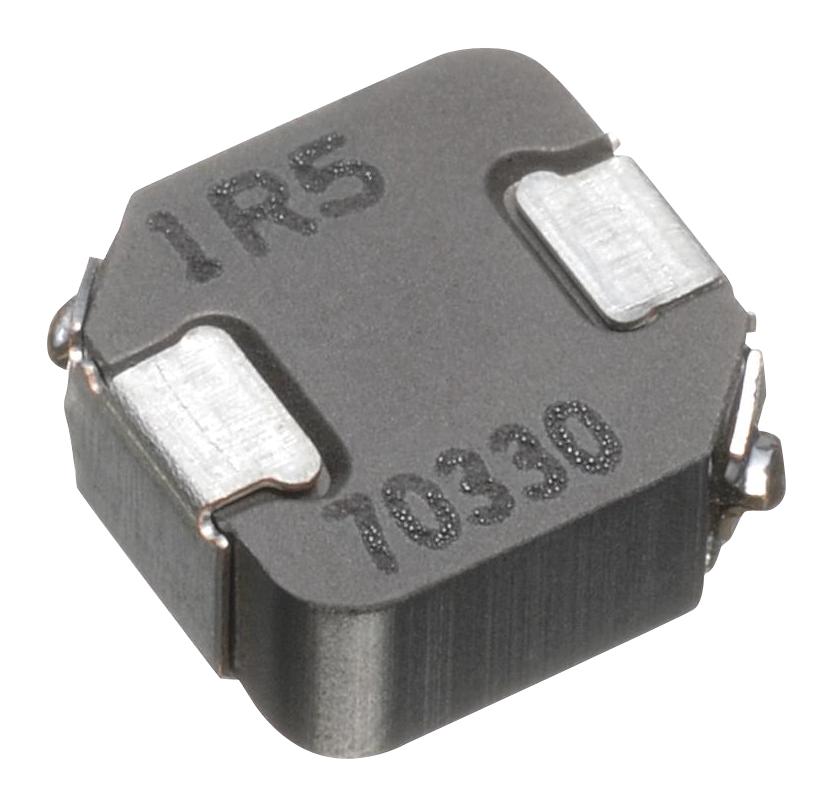

TDK Corporation SPM5020T100MLR Power Inductor
The SPM-LR series 5020 type from TDK is a line of commercial-grade magnetic shielded wire-wound inductors designed for power circuits. Made with a metallic magnetic core, these inductors feature inductance values ranging from 1 µH to 10 µH. They are low-profile components with dimensions of 5.4mm x 5.1mm x 2mm, suitable for compact designs. These inductors exhibit low DCR values, ranging from 17.2mΩ to 174.8mΩ, and support Isat currents between 3.4A and 9.5A. They maintain consistent inductance with minimal variance at high temperatures and excellent DC superimposition characteristics. The inductors are tolerant within ±20%, operate reliably in temperatures from -40°C to +125°C, and are compatible with reflow iron soldering methods. Compared to ferrite wound inductors, they enable high current handling, low resistance, and compact size.
TDK Corporation SPM5020T100MLR Power Inductor Specifications:
- Inductance: 1 µH to 10 µH with ±20% tolerance
- Dimensions: 5.4mm x 5.1mm x 2mm
- Material: Metallic magnetic core
- DCR: 17.2mΩ to 174.8mΩ
- Support Current: 3.4A to 9.5A (Isat)
- Temperature Range: -40°C to +125°C
- Soldering: Compatible with reflow iron soldering
- Construction: Wound magnetic shield type
- Application: Power circuits, VRMs, compact power modules
- Features: Low profile, high current capacity, low resistance, stable inductance
Buy the TDK SPM5020T100MLR – Reliable Power Inductors for Industrial Applications
Discover the TDK Power Inductor designed for high-power applications and demanding environments. This low-profile, metallic magnetic core inductor offers excellent current handling, minimal resistance, and stable inductance from -40°C to +125°C. Perfect for VRMs, compact power supplies, and industrial equipment. Its precise construction supports reliable operation with low DCR and high thermal stability, ensuring long-lasting performance. Order online today and enhance your power circuits with the durable, reliable inductors engineered for optimal efficiency and compact design.
Get TDK SPM5020T100MLR today—built for high-current power circuits and durable operation in demanding environments.
Frequently Asked Questions
Where can I buy TDK Corporation SPM5020T100MLR?
You can click on the BUY or RFQ button to purchase SPM5020T100MLR from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part SPM5020T100MLR?
You can download the SPM5020T100MLR datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of SPM5020T100MLR?
TDK Corporation
