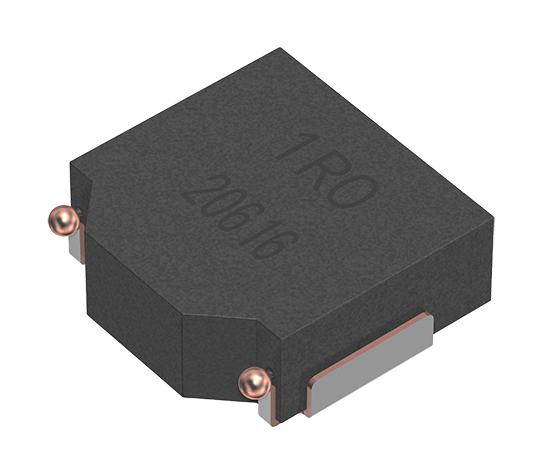

TDK Corporation SPM5020TR68MLR Power Inductor
The SPM5020-LR series is a magnetic shield wound inductor designed for high-current power circuits with low-profile construction. Utilizing metallic magnetic material, these inductors provide reliable performance with minimal DC resistance, low inductance variance at high temperatures, and excellent DC superimposition characteristics. Ideal for applications in tablet terminals, notebooks, HDDs, servers, VRMs, and compact power supplies, they feature a molded coil structure that reduces hum noise and operates efficiently across a temperature range of -40°C to +125°C. Their compact size and performance make them suitable for advanced electronic devices.
TDK Corporation SPM5020TR68MLR Power Inductor Specifications:
- Inductance: 0.47 to 68 μH with ±20% tolerance
- DC Resistance: varies per model, measured with Keysight equipment
- Rated Current: up to 152.0 A (for 10.0 μH model)
- Operating Temperature: -40°C to +125°C (including self-temperature rise)
- Dimensions: 42.4 mm x 17.8 mm x 15.1 mm (WxLxH)
- Material: Metallic magnetic core with molded coil structure
- Frequency Range: tested up to 100 kHz for inductance stability
- Storage Temperature: 5°C to 40°C, humidity below 75% RH
- Lead Free Reflow Soldering Compatible with recommended profiles
- Package: Reels of 500 pieces for automated assembly
Buy the Buy Industry Electronic Components Power Inductor Part Number SPM5020TR68MLR Online
Order the SPM5020-LR series power inductor online to optimize your electronic design with high current capacity, low resistance, and excellent thermal stability. Suitable for high-performance modules like VRMs, HDDs, and power supplies, this inductor features a molded coil structure that minimizes hum noise and operates efficiently across a broad temperature range. Its compact dimensions, high rated current, and adherence to safety standards make it ideal for demanding applications. Purchase now to ensure your devices benefit from advanced magnetic shielding and low-profile design for space-constrained environments, with fast shipping and secure checkout available.
Buy Industry Electronics Power Inductor SPM5020TR68MLR now and experience reliable high-current performance in compact applications.
Frequently Asked Questions
Where can I buy TDK Corporation SPM5020TR68MLR?
You can click on the BUY or RFQ button to purchase SPM5020TR68MLR from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part SPM5020TR68MLR?
You can download the SPM5020TR68MLR datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of SPM5020TR68MLR?
TDK Corporation
