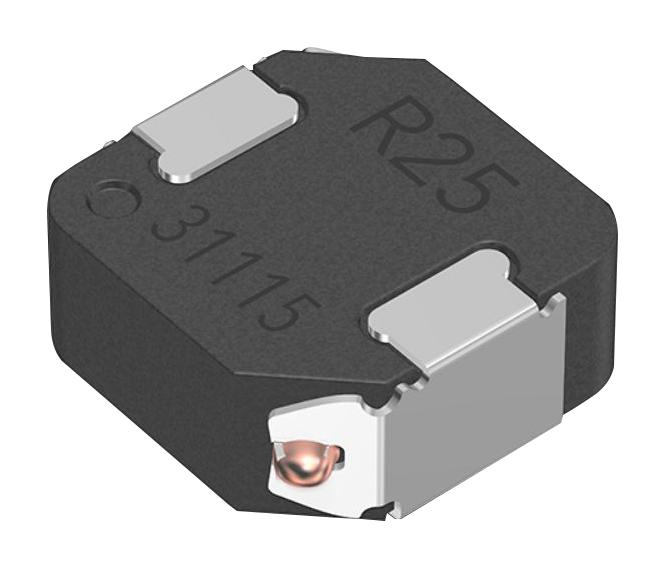

TDK Corporation SPM6530T2R2MHZ Automotive Power Inductor
The SPM6530-HZ series is a range of magnetic shield wound inductors designed for automotive power circuits. These inductors utilize metallic magnetic material, featuring an integrated molded coil that offers high current capacity, low Rde, and compact size. They maintain consistent inductance in high-temperature environments from -40 to +125°C, including self-temperature rise, and are compliant with AEC-Q200 standards for automotive reliability. Suitable for automotive electronics like car navigation, audio, power steering, and lighting, they provide reliable performance across demanding conditions.
TDK Corporation SPM6530T2R2MHZ Automotive Power Inductor Specifications:
- Type: Magnetic shield wound inductor using metallic magnetic material
- Operating temperature: -40 to +125°C (including self-temperature rise)
- Compliance: AEC-Q200
- Inductance range: 0.47 μH to 70 μH
- Rated current: 700 mA to 1000 mA depending on model
- DC Resistance: varies from 3.30 mΩ to 78.5 mΩ
- Dimensions: approximately 22.4 mm max in length, with recommended land pattern of 7.4 mm x 7.6 mm
- Package: Reel quantity 1000 pcs
- Material: Metallic magnetic core with molded coil structure
- Suitable for automotive applications: Car navigation, audio, lighting, electronic power steering
- Frequency Characteristics: up to 220 MHz, low inductance variance under DC bias
- Storage conditions: 5 to 40°C, 10-75% RH, with a shelf life of 12 months
Buy the Buy Automotive Magnetic Shield Wound Inductor Part Number SPM6530T2R2MHZ Online
Explore and purchase the automotive magnetic shield wound inductor SPM6530T2R2MHZ online for your vehicle's electronic systems. Designed for high current capacity, low resistance, and stability under extreme temperature conditions, this inductor is ideal for car navigation, audio, lighting, and power steering modules. Its compact form factor and compliant design ensure easy integration and reliable performance. Benefit from fast delivery, trusted quality, and comprehensive support when you buy this essential component for automotive power circuits online today.
Order your automotive Magnetic shield wound inductor SPM6530T2R2MHZ today and ensure reliable power management for your automotive projects.
Frequently Asked Questions
Where can I buy TDK Corporation SPM6530T2R2MHZ?
You can click on the BUY or RFQ button to purchase SPM6530T2R2MHZ from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part SPM6530T2R2MHZ?
You can download the SPM6530T2R2MHZ datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of SPM6530T2R2MHZ?
TDK Corporation
