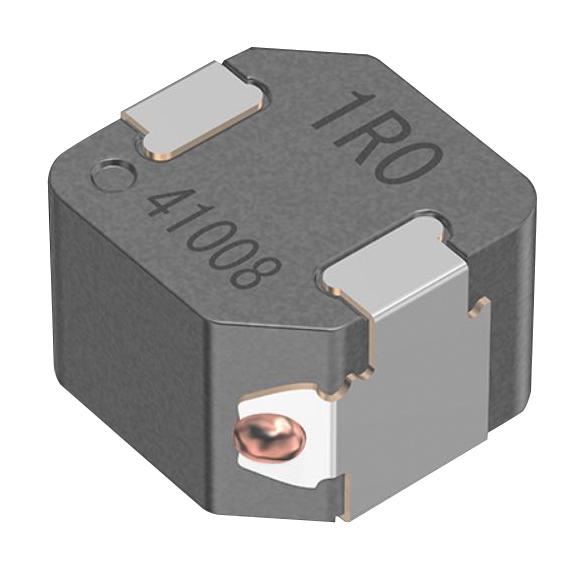

TDK Corporation SPM6550T1R0M100A Power Circuit Inductor
The SPM6550 series inductors are magnetic shield wound components designed for power circuits, featuring high current capability, low resistance, and compact size. Utilizing metallic magnetic material and integrated molded coils, these inductors deliver excellent performance with minimal hum noise. Operating within -40°C to +125°C, they are suitable for PCs, HDDs, servers, VRMs, and power modules. Their low inductance variance in high temperatures and reliable DC superimposition make them ideal for demanding electronic applications requiring compact, high-efficiency inductors.
TDK Corporation SPM6550T1R0M100A Power Circuit Inductor Specifications:
- Inductance: 3, 5.0, 4R7M uH
- DC Resistance: 2.97 to 23.7 mΩ depending on model
- Rated Current: 20.1 to 20.5 A based on model
- Maximum Isat: 16.6 to 20.1 A depending on model
- Operating Temperature Range: -40°C to +125°C
- Dimensions: 16.4 x 22.4 x 7.4 mm (L x W x H)
- Packaging Style: Reel, 1000 pcs per reel
- Material: Metallic magnetic material, molded coil
- Frequency Range: Up to 100 kHz, tested with Keysight equipment
- Application: Power circuits in PCs, HDDs, servers, VRMs
- Temperature Coefficient: Low inductance variance in high temperatures
Buy the Buy Inductor Series SPM6550 Part Number SPM6550T1R0M100A Online
Purchase the SPM6550 series inductors online to ensure high-quality power circuit components with low Rdc and excellent temperature stability. These inductors are ideal for modern electronics, featuring metallic magnetic material, integrated molded coils, and excellent DC superimposition characteristics. Suitable for PC power supplies, servers, and VRMs, they operate reliably from -40°C to +125°C. Their compact size, low noise, and high current capacity make them a perfect choice for demanding electronic designs, enabling efficient and stable power management in various devices.
Buy Inductor Series SPM6550 Part Number SPM6550T1R0M100A now and experience reliable high-current performance in compact design.
Frequently Asked Questions
Where can I buy TDK Corporation SPM6550T1R0M100A?
You can click on the BUY or RFQ button to purchase SPM6550T1R0M100A from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part SPM6550T1R0M100A?
You can download the SPM6550T1R0M100A datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of SPM6550T1R0M100A?
TDK Corporation
