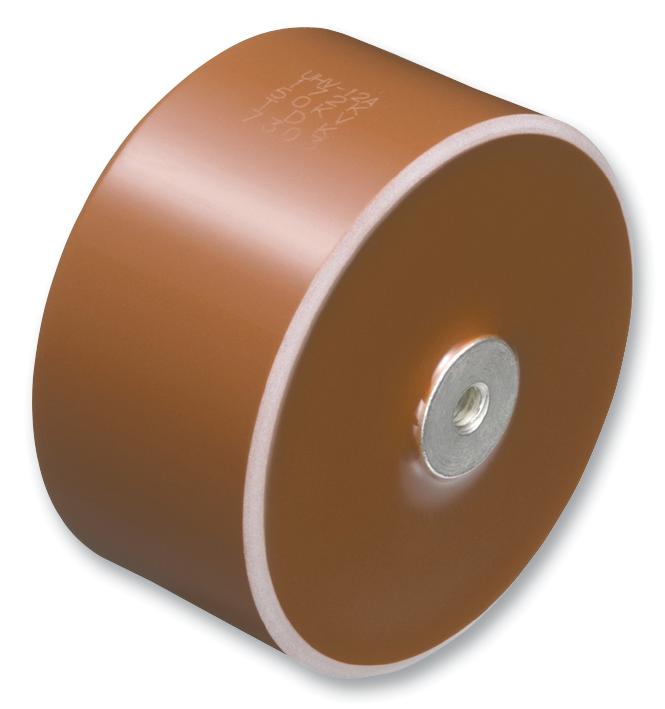

TDK Corporation UHV242A High Voltage Ceramic Capacitor
The UHV242A is an ultra high voltage ceramic capacitor designed for high voltage power supplies and lasers. It features molded metal screw terminals for easy mounting, operates between -30°C to +85°C, and has a rated voltage of 40 kV. With a low ESR, low-loss, and high-reliability mold resin, it provides excellent performance in high-voltage circuits. Its compact design and precise dimensions make it suitable for medical devices, lithography, and industrial analyzers requiring stable, high-voltage components. Certified ROHS compliant, ensuring environmentally friendly manufacturing and operation.
TDK Corporation UHV242A High Voltage Ceramic Capacitor Specifications:
- Rated Voltage: 40 kV
- Capacitance: 200 pF
- Temperature Range: -30°C to +85°C
- Dimensions: Molded type, internal screw ISO M4, approximate length 22 mm
- Material: High-reliability mold resin
- Dissipation Factor: Max 0.2%
- Leakage Current: Max specified according to model
- Insulation Resistance: Min 100000 MΩ
- Corona Resistance: Max 10 Mo
- Compliance: ROHS Directive
- Operating Temperature: -30°C to +85°C
- Weight: 38 grams
- Application: High-voltage power supplies, industrial analyzers, lithography
Buy the Buy TDK High Voltage Ceramic Capacitor Part Number UHV242A Online
Purchase the TDK UHV242A high-voltage ceramic capacitor online today for reliable, high-performance operation in industrial power supplies, lasers, and high-voltage circuits. Featuring molded metal screw terminals for easy installation, operating between -30°C and +85°C with a rated voltage of 40 kV, it offers low ESR, low-loss, and high reliability. Its compact dimensions, ROHS compliance, and robust construction make it ideal for medical equipment, lithography, and industrial analyzers. Secure your high-voltage components now with fast delivery and expert support.
Order your TDK SeriesUHV-242A high-voltage ceramic capacitor today and ensure reliable performance in your high-voltage power applications.
Frequently Asked Questions
Where can I buy TDK Corporation UHV242A?
You can click on the BUY or RFQ button to purchase UHV242A from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part UHV242A?
You can download the UHV242A datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of UHV242A?
TDK Corporation
