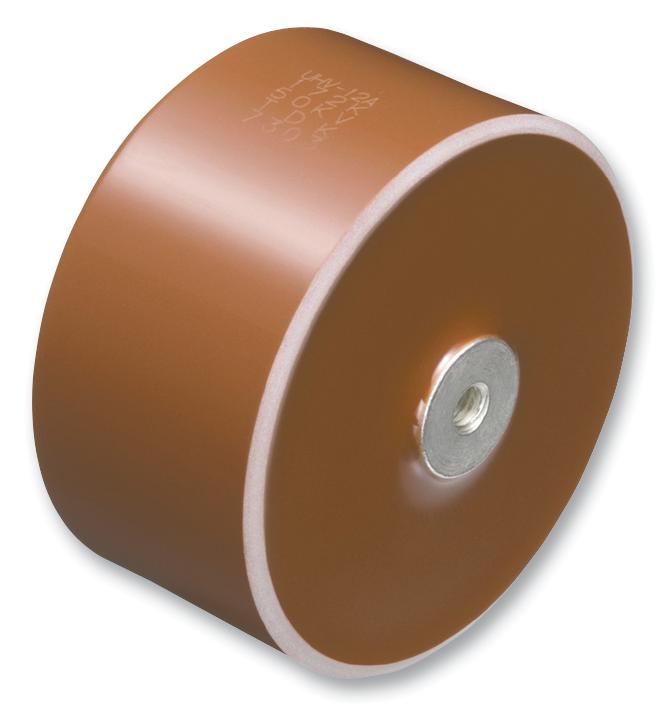

TDK Corporation UHV7A High Voltage Ceramic Capacitors
The UHV series features ultra high voltage ceramic capacitors with metal terminals, designed for high voltage power supplies and lasers. These molded type capacitors offer rated voltages from 20 to 50 kV, with small ESR, low-loss, and low distortion factors. Suitable for high-voltage power circuits, including medical devices, lithography, and industrial analyzers, they operate within -30°C to +85°C. They are RoHS compliant, feature high reliability with mold resin, and come in various sizes and screw terminal configurations for easy mounting and robust performance in demanding environments.
TDK Corporation UHV7A High Voltage Ceramic Capacitors Specifications:
- Rated Voltage: 20 to 50 kV
- Operating Temperature Range: -30°C to +85°C
- Storage Temperature Range: -30°C to +85°C
- Material: Molded high-reliability resin
- Terminals: Metal screw type for easy mounting
- Capacitance: Up to 7,700 pF depending on model
- Dissipation Factor: Low (typically 0.2%)
- Insulation Resistance: ≥ 100,000 MΩ
- Corona Resistance: Up to 15 minutes at rated voltage
- RoHS Compliant: Yes
- Size: Varies with model, dimensions include lengths from 20 mm to 60 mm and weights from 14 g to 297 g
- Includes: Internal screw thread ISO M4 to M5 for secure mounting
Buy the Buy TDK UHV Series Capacitors Part Number UHV7A Online
Experience the reliability and high performance of TDK UHV series high voltage ceramic capacitors. Designed for demanding applications like medical devices, lithography, and industrial analyzers, these capacitors feature rated voltages from 20 to 50 kV, low ESR, and low distortion. Their molded resin construction ensures high reliability and thermal stability across -30°C to +85°C. With metal screw terminals for easy mounting and RoHS compliance, they provide an effective solution for high-voltage power circuits requiring safety and durability, making them ideal for advanced industrial and scientific equipment.
Order your TDK UHV series UHV7A high voltage capacitor today and ensure your power systems and laser equipment operate reliably with proven high-voltage performance.
