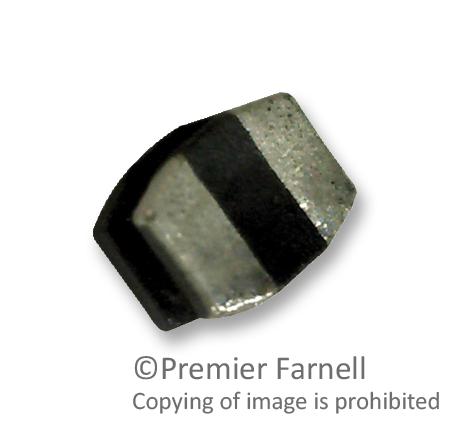

TDK Corporation VLS201612ET2R2M Power Inductor
The VLS201612E type is a magnetic shield wound inductor designed for power circuits, suitable for compact electronic devices such as smartphones, tablets, HDDs, SSDs, and portable power modules. It features a low-profile design, high magnetic shield construction, and RoHS compliance, ensuring safe, environmentally friendly use. Operating within -40°C to +105°C, it provides stable inductance values from 0.47 μH to 10 μH with a rated current up to 2.15A, and is compatible with lead-free solders, making it ideal for high-density mounting and modern electronic applications.
TDK Corporation VLS201612ET2R2M Power Inductor Specifications:
- Dimensions: 2.0 x 1.6 x 1.2 mm
- Operating temperature: -40°C to +105°C
- Storage temperature: -40°C to +105°C
- Inductance range: 0.47 μH to 10 μH
- Rated current: up to 2.15A
- DC Resistance: ranges from 0.052Ω to 0.365Ω depending on inductance
- RoHS and halogen-free compliant
- Compatible with lead-free solders
- Magnetic shield type, suitable for high-density mounting
- Applications include smartphones, tablets, HDDs, SSDs, portable electronic devices
Buy the Buy TDK VLS201612E Power Inductor Part Number VLS201612ET2R2M Online
Discover the TDK VLS201612E power inductor, designed for compact electronic devices such as smartphones, tablets, and power modules. Its low-profile, high magnetic shield construction ensures reliable performance in high-density PCB layouts. RoHS compliant and suitable for lead-free solders, this inductor operates from -40°C to +105°C, providing stable inductance from 0.47 μH to 10 μH with rated currents up to 2.15A. Perfect for modern electronics requiring efficient power management and robust design.
Get TDK VLS201612ET2R2M today—built for precision and long-lasting durability in high-density electronic circuits.
Frequently Asked Questions
Where can I buy TDK Corporation VLS201612ET2R2M?
You can click on the BUY or RFQ button to purchase VLS201612ET2R2M from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part VLS201612ET2R2M?
You can download the VLS201612ET2R2M datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of VLS201612ET2R2M?
TDK Corporation
