TDK Corporation VLS252010ET2R2M Power Inductor
This magnetic shield wound inductor is designed for power circuits, featuring a low-profile, high magnetic shield construction suitable for high-density mounting. The VLS252010E type supports applications like smartphones, tablets, HDDs, SSDs, cameras, portable devices, and compact power modules. It complies with RoHS and halogen-free standards, with a temperature range of -40°C to +105°C. Featuring a footprint of 2.5x2.0mm and a height of 1.0mm, it has optional inductance values from 0.47μH to 10μH, low DC resistance, and rated current specifications. Suitable for high-frequency operation, it is packaged in tapes with specified reel dimensions and weight of approximately 17 mg.
TDK Corporation VLS252010ET2R2M Power Inductor Specifications:
- Dimensions: 2.5x2.0x1.0 mm
- Temperature Range: -40°C to +105°C
- Inductance Range: 0.47μH to 10μH
- Tolerance: ±20% to ±30%
- Rated Current: 1.0 A to 2.8 A depending on inductance
- DC Resistance: 0.046Ω to 0.854Ω
- Material: Halogen-free, RoHS compliant
- Packaging: Tape, reel dimensions 180mm length, reel weight approximately 17 mg
- Application: Smartphones, tablets, HDDs, SSDs, portable devices, power modules
- Mounting: High magnetic shield, suitable for high-density mounting
- Frequency Range: Up to 1 MHz
- Peak Reflow Soldering: 260°C, 10s
- Features: Low-profile, magnetic shield, RoHS and halogen-free compliant

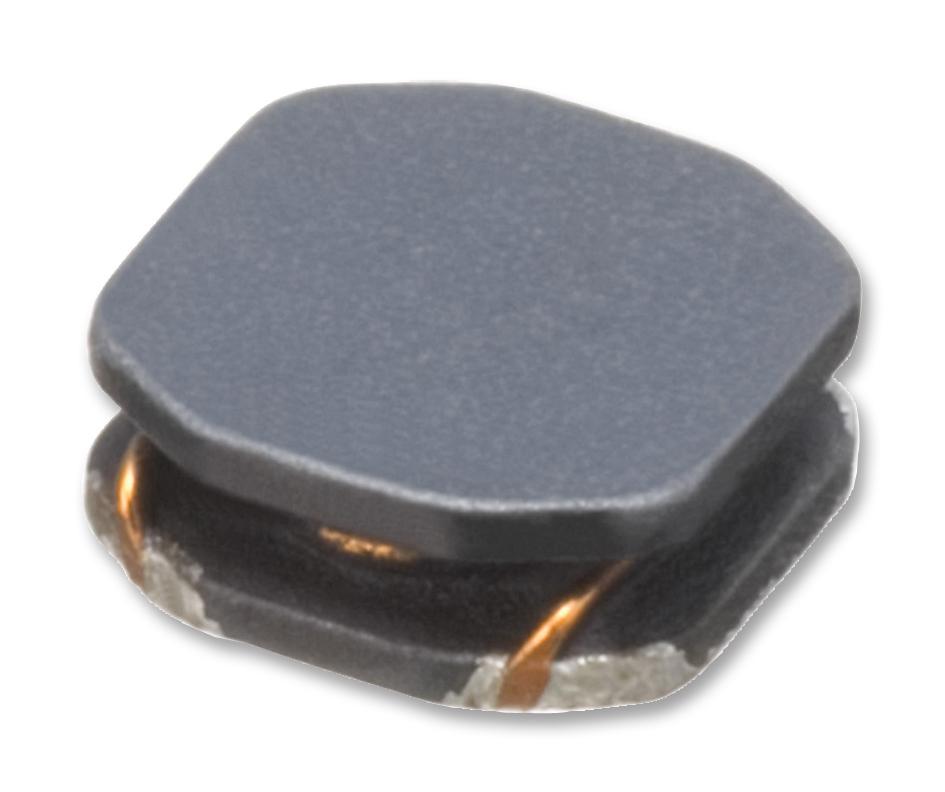

Buy the TDK VLS252010E – Reliable Power Inductor for Industrial Applications
Enhance your electronic projects with the TDK Power Inductor designed for power circuits and high-density applications. Featuring a compact 2.5x2.0mm footprint and a height of 1.0mm, this RoHS-compliant, halogen-free inductor offers excellent high-frequency performance. Suitable for smartphones, SSDs, HDDs, portable devices, and power modules, it supports a wide temperature range and high rated currents up to 2.8 A. Easy to install using tape packaging, it ensures reliability and durability in your electronic assemblies. Purchase online today for quality components that meet industry standards.
Get TDK VLS252010E today—built for precision and long-lasting durability in power circuits.
Frequently Asked Questions
Where can I buy TDK Corporation VLS252010ET2R2M?
You can click on the BUY or RFQ button to purchase VLS252010ET2R2M from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part VLS252010ET2R2M?
You can download the VLS252010ET2R2M datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of VLS252010ET2R2M?
TDK Corporation
