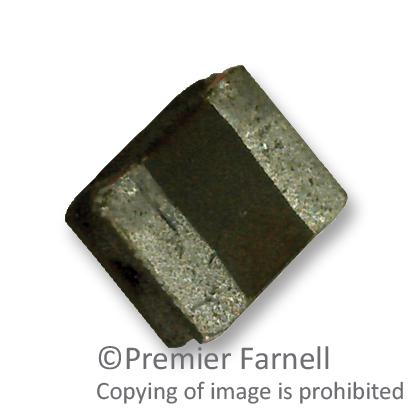

TDK Corporation VLS252012HBX1R5M1 Magnetic Shield Inductor
The VLS252012HBX-1 series are magnetic shield wound inductors designed for power circuits, featuring high-current capacity, RoHS compliance, and halogen-free construction. Suitable for compact electronic devices such as smartphones, HDDs, SSDs, and portable power modules, these inductors offer excellent high-density mounting, low DC resistance, and stable inductance over a wide temperature range from -40°C to +105°C. Their construction ensures minimal magnetic interference, making them ideal for high-performance, space-constrained applications in consumer electronics and industrial equipment.
TDK Corporation VLS252012HBX1R5M1 Magnetic Shield Inductor Specifications:
- Inductance: 0.24 to 10 μH, tolerance ±20%
- Operating temperature: -40°C to +105°C
- Storage temperature: -40°C to +105°C
- Package quantity: 2000 pieces per reel
- Weight: approximately 30 mg
- Dimensions: 2.5 x 2.0 x 1.2 mm (L x W x H)
- Compatible with lead-free soldering
- RoHS and halogen-free compliant
- Magnetic shield type winding with high magnetic shield construction
- Rated current: up to 7.10 A at 0.24 μH
- DC Resistance: approximately 0.022 to 0.056 Ω depending on inductance
- Manufactured under RoHS directive, suitable for high-density mounting
- Suitable for use in smartphones, HDDs, SSDs, portable game devices, and compact power modules
Buy the TDK VLS252012HBX-1 Reliable Magnetic Shield Inductor for Industrial Applications
Purchase the TDK VLS252012HBX-1 magnetic shield inductor today for your power circuit needs. Designed with a high magnetic shield for minimal interference in space-saving applications, this lead-free, RoHS-compliant component ensures reliable performance in smartphones, HDDs, SSDs, and portable power modules. With excellent thermal stability, low DC resistance, and a robust construction, it provides efficient energy management in compact devices. Order now for fast delivery and integrate a proven high-current inductor optimized for industrial and consumer electronic applications.
Get TDK VLS252012HBX-1 today—built for high current and compact power supply design reliability.
Frequently Asked Questions
Where can I buy TDK Corporation VLS252012HBX1R5M1?
You can click on the BUY or RFQ button to purchase VLS252012HBX1R5M1 from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part VLS252012HBX1R5M1?
You can download the VLS252012HBX1R5M1 datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of VLS252012HBX1R5M1?
TDK Corporation
