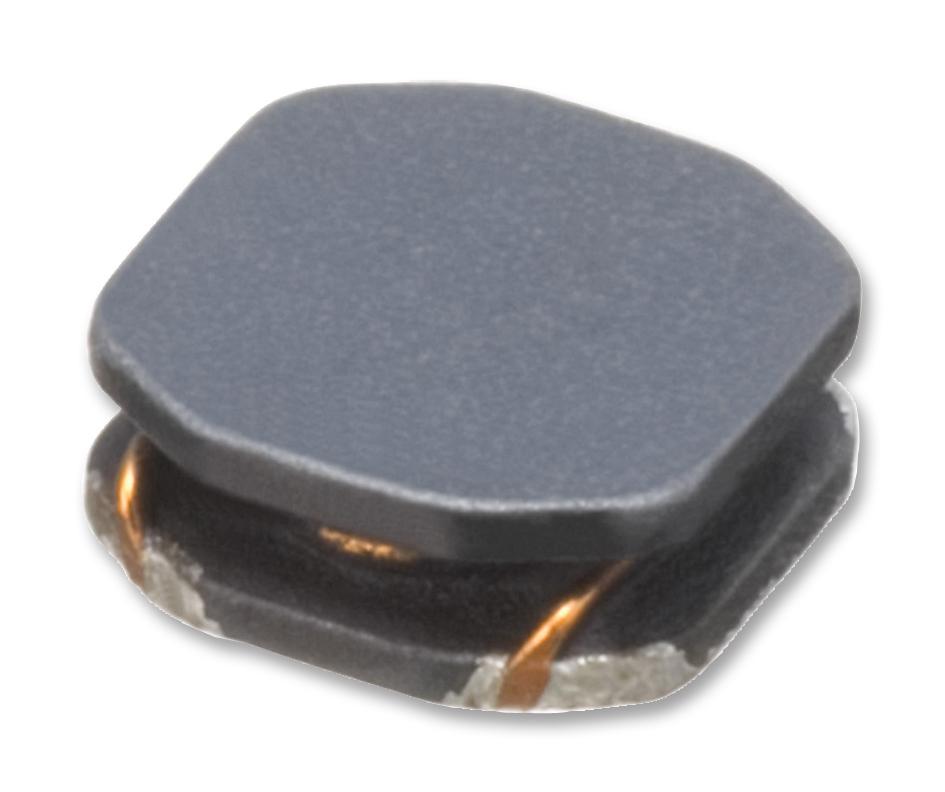

TDK Corporation VLS3015ET4R7M Power Inductor
The VLS3015E is a magnetic shield wound inductor designed for power circuits, offering a compact, low-profile construction suitable for high-density mounting applications. It features excellent electrical characteristics, such as low DC resistance, high rated current capacity, and stable inductance over a wide temperature range from -40°C to +105°C. Ideal for use in smart phones, tablet devices, HDDs, SSDs, mobile displays, and portable power modules, this product complies with RoHS directives and is compatible with lead-free soldering processes, ensuring safety and environmental standards.
TDK Corporation VLS3015ET4R7M Power Inductor Specifications:
- Series: VLS3015
- Dimensions: 3.0x3.0x1.5 mm
- Operating Temperature: -40°C to +105°C
- Storage Temperature: 40°C to +105°C
- Package Quantity: 2000 pieces/reel
- Individual Weight: 52 mg
- Material: Wound ferrite with magnetic shield
- Solder Compatibility: Compatible with lead-free solders
- RoHS Directive: Compliant, halogen-free
- Max DC Resistance: 0.058 Ohm at 1.0 MHz
- Rated Current: Up to 2.20 A depending on inductance
- Inductance Range: 1.5µH to 47µH
- Frequency Range: Up to 1 MHz
- Features: High-density mounting, low profile, magnetic shield, suitable for high current applications
Buy the Buy TDK VLS3015E Part Number VLS3015ET4R7M Online
Discover the TDK VLS3015E power inductor, ideal for compact electronic devices and high-current power modules. Its magnetic shield construction ensures minimal electromagnetic interference, making it perfect for smartphones, SSDs, HDDs, and portable gadgets. The low-profile design supports high-density mounting, while RoHS compliance ensures environmental safety. Designed to operate at temperatures from -40°C to +105°C with a rated current up to 2.20 A, this inductor offers exceptional electrical stability, durability, and performance, providing a reliable power solution for modern electronic applications.
Buy TDK VLS3015ET4R7M now and experience unmatched reliability and performance in power inductors for your high-density circuit designs.
Frequently Asked Questions
Where can I buy TDK Corporation VLS3015ET4R7M?
You can click on the BUY or RFQ button to purchase VLS3015ET4R7M from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part VLS3015ET4R7M?
You can download the VLS3015ET4R7M datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of VLS3015ET4R7M?
TDK Corporation
