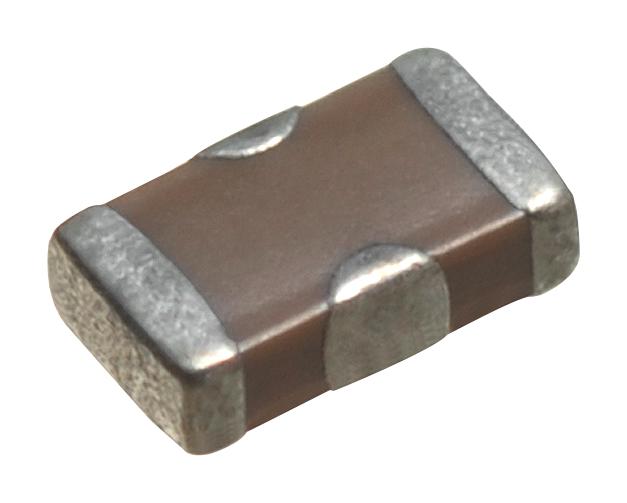

TDK Corporation YFF15PC0J105MT000N EMI Filter
The YFF-P series feedthrough filters are small, high-performance EMC components designed for large current applications (2A to 4A). They provide excellent attenuation across a wide frequency range, making them suitable for power lines of communication devices, smart phones, AV, and information equipment. Constructed with low ESL type technology, these filters feature robust ratings and are compliant with RoHS directives. Easy to integrate with recommended land patterns and reliable soldering conditions, they ensure effective electromagnetic interference suppression in high-demand electronic systems.
TDK Corporation YFF15PC0J105MT000N EMI Filter Specifications:
- Rated voltage: 63V or 6.3V depending on model
- Rated current: 4A
- Frequency range: 0.2 MHz to 1000 MHz or 2000 MHz depending on model
- Insertion loss: 40dB across specified frequency range
- Operating temperature: -55°C to +125°C
- Storage temperature: -55°C to +125°C
- Package quantity: 10,000 to 70,000 pieces/reel depending on type
- Dimensions vary by model, typically around 1.0x0.5mm to 2.0x1.0mm
- RoHS compliant and halogen-free, suitable for environmentally conscious designs
- Recommended land pattern and soldering conditions provided for reliable assembly
- Effective attenuation characteristics over a broad bandwidth, suitable for EMI suppression in communication devices
- Construction includes low ESL and high ΔCC technology for low impedance at high frequencies
- Part numbers specify different capacitance and package styles tailored for specific applications
- Compatible with standard surface-mount PCB layouts, ensuring easy integration into various electronic assemblies
- Manufactured with quality standards guaranteed for industrial electronic components
Buy the TDK Series YFF-P EMI Filter: YFF15PC0J105MT000N
Order the TDK YFF15PC0J105MT000N today and ensure your electronic devices operate efficiently with top-tier electromagnetic interference filtering. Designed for high current applications, these compact SMD filters provide reliable performance across a wide frequency range, helping you meet strict EMI standards. Their RoHS compliance and halogen-free construction make them suitable for environmentally conscious designs. Easy to assemble with recommended land patterns, they guarantee effective noise reduction, making them ideal for communication devices, smart phones, AV systems, and industrial electronics. Enhance your products’ electromagnetic compatibility now.
Get TDK YFF15PC0J105MT000N today—built for precision and long-lasting durability in EMI suppression.
Frequently Asked Questions
Where can I buy TDK Corporation YFF15PC0J105MT000N?
You can click on the BUY or RFQ button to purchase YFF15PC0J105MT000N from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part YFF15PC0J105MT000N?
You can download the YFF15PC0J105MT000N datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of YFF15PC0J105MT000N?
TDK Corporation
