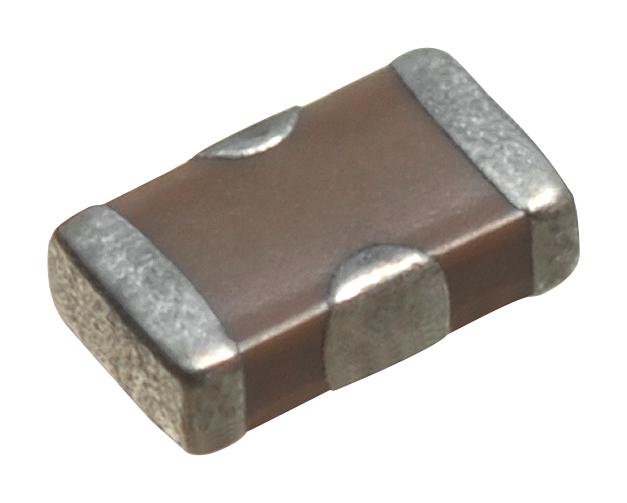

TDK Corporation YFF18AC1H472MT0Y0N Automotive feed-through filter
The YFF series feed-through filters are compact, high-performance EMC components designed for automotive applications, effectively reducing noise and improving signal integrity. With a feed-through structure, these filters allow direct current to pass internally, minimizing ESL and ensuring low impedance for decoupling and EMI suppression in modern automotive electronic systems. Compliant with AEC-Q200 standards, they are suitable for use in ECUs, ADAS, and autonomous driving systems, offering reliable electrical performance, wide bandwidth attenuation, and robust construction for demanding automotive environments.
TDK Corporation YFF18AC1H472MT0Y0N Automotive feed-through filter Specifications:
- Series: YFF18AC and YFF21AC
- Dimensions: YFF18AC - Length 1.60 mm, Width 0.80 mm; YFF21AC - Length 2.00 mm, Width 1.25 mm
- Rated voltage: 6.3 V DC
- Capacitance: Range from 100 pF to 4700 pF, specified by codes like 102, 473, 222, 104, etc.
- Operating temperature: -55°C to +125°C
- Storage temperature: -55°C to +125°C
- Insertion loss: Up to 30 MHz at 30 dB attenuation
- Material: Halogen-Free, REACH compliant
- GND terminal: Short distance to PCB ground with via or through-hole mounting
- Applications: Automotive EMC, noise filtering, decoupling in ECUs, ADAS, autonomous driving systems
- Compliance: RoHS, REACH, and AEC-Q200 standards
- Construction: Feed-through structure with internal capacitance and through-hole design for minimal ESL
Buy the TDK YFF18AC – Reliable Automotive EMI Filter for Industrial Applications
Order TDK YFF18AC feed-through filters online today to ensure optimal EMI reduction, decoupling, and noise filtering in automotive ECUs and ADAS systems. Designed for high-performance automotive environments, these compact filters meet strict industry standards for reliability and safety. Benefit from fast, secure online purchasing with detailed technical specifications, enabling efficient integration into your vehicle electronics. Ensure your automotive systems operate smoothly and safely by choosing TDK’s proven EMI filtering solutions available for quick delivery online.
Get TDK YFF18AC today—built for precision, automotive EMI suppression, and long-lasting durability in critical electronic systems.
Frequently Asked Questions
Where can I buy TDK Corporation YFF18AC1H472MT0Y0N?
You can click on the BUY or RFQ button to purchase YFF18AC1H472MT0Y0N from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part YFF18AC1H472MT0Y0N?
You can download the YFF18AC1H472MT0Y0N datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of YFF18AC1H472MT0Y0N?
TDK Corporation
