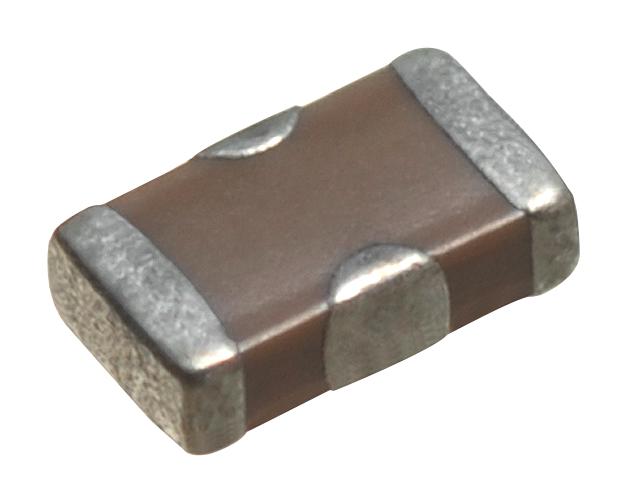

TDK Corporation YFF21AC1E104MT0Y0N Automotive EMC Filter
The YFF series FEED THROUGH FILTERS are compact, high-performance EMC components designed for automotive use, providing effective EMI mitigation. With a feed-through structure that minimizes ESL by shortening the distance to GND, these filters excel in decoupling and noise suppression in power lines for automotive systems such as ECUs, ADAS, and autonomous driving applications. Compliant with AEC-Q200 standards, they ensure reliable operation in harsh environments, and come in various capacitance and voltage ratings, backed by detailed electrical specifications for optimal integration.
TDK Corporation YFF21AC1E104MT0Y0N Automotive EMC Filter Specifications:
- Series: YFF18AC, YFF21AC
- Dimensions: Length 1.60-2.00 mm, Width 0.80-1.25 mm, Terminal width 0.25-0.30 mm
- Rated voltage: 6.3V-25V DC
- Capacitance: 100 pF to 2,200 pF
- Construction: Feed-through structure for minimized ESL
- Storage & Operating temperature: -55°C to +125°C
- Compliance: RoHS, REACH, Halogen, SVHC-Free
- Application: Automotive EMC mitigation, power line decoupling in ECUs, ADAS, autonomous systems
- Features: Low impedance, effective wide bandwidth attenuation, GND electrode parallel effect
- Package reel sizes: 330 mm or 150 mm depending on series
Buy the TDK YFF21AC – Reliable Automotive EMI Filter for Industrial Applications
Enhance your automotive or industrial electronic systems with TDK's high-performance feed-through filters. Designed for EMI mitigation and noise decoupling, these filters are IEC compliant, compact, and robust, ensuring reliable operation in complex environments. Ideal for ECUs, ADAS, and autonomous systems, they support wide bandwidth attenuation, contribute to system stability, and simplify integration with their small size and effective GND structure. Purchase online today for dependable noise filtering with top-tier quality standards.
Buy TDK YFF21AC feed-through filter now and ensure noise suppression and EMI mitigation in automotive and industrial systems with high reliability.
Frequently Asked Questions
Where can I buy TDK Corporation YFF21AC1E104MT0Y0N?
You can click on the BUY or RFQ button to purchase YFF21AC1E104MT0Y0N from an authorized TDK Corporation distributor.
How do I troubleshoot issues or seek technical support for part YFF21AC1E104MT0Y0N?
You can download the YFF21AC1E104MT0Y0N datasheet or visit the TDK Corporation website for support.
Who is the manufacturer of YFF21AC1E104MT0Y0N?
TDK Corporation
