TDK-LAMBDA RWS1500B12FO Datasheet & Stock

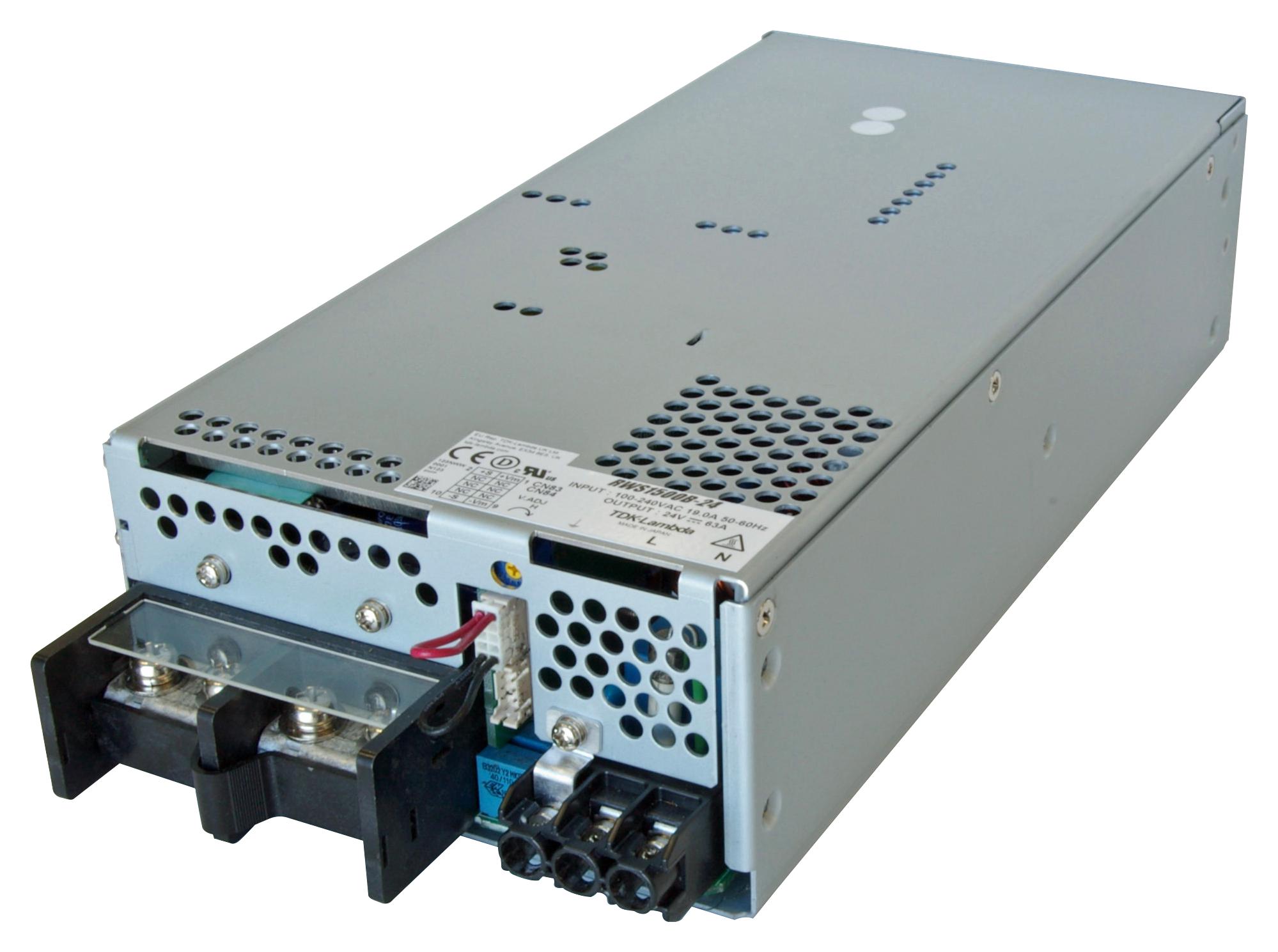

The TDK-Lambda RWS1500B12/FO is a single-output, general-purpose power supply from the RWS1500-B series. It is designed for industrial applications and features an input voltage range of 85 to 265 VAC (47-63Hz) or 120 to 340 VDC. The power supply provides a regulated 12V output with a maximum current of 125A, delivering up to 1500W of power. It has an enclosed, compact, and cost-effective design with high efficiency ratings of 81% at 115VAC and 85% at 230VAC. The unit includes features such as ripple and noise levels of 150mV, line regulation of 48mV, load regulation of 96mV, and internal fan cooling. Safety approvals include UL60950-1, CSA60950, and EN60950-1. It also meets EMI standards EN55011/EN55032-B, FCC Class B, and VCCI-B. The power supply withstands voltages of up to 2kVAC (input to ground), 4kVAC (input to output), and 1.5kVAC (output to ground) for one minute. It measures 127mm x 63mm x 261mm and weighs approximately 3000g. Features include parallel operation capability, DC good, fan alarm signals, high isolation resistance (>100MΩ), and airflow cooling via input/output terminals with integrated fan. Suitable for industrial applications requiring reliable power supply solutions.

View RWS1500B12FODatasheet [pdf]
