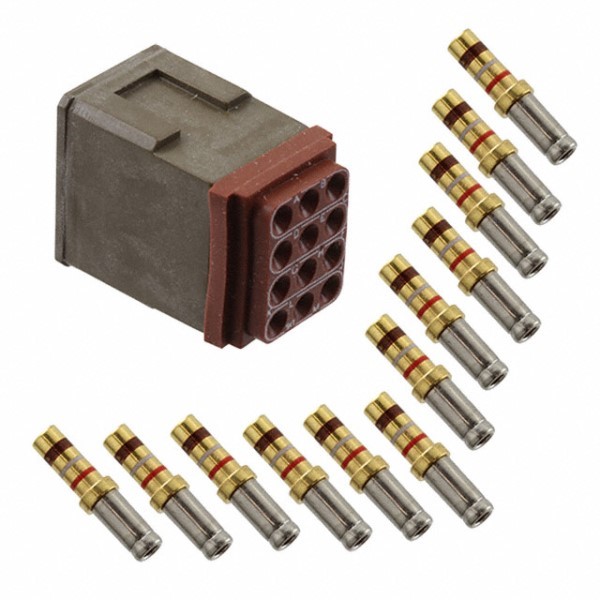

TE Connectivity DEUTSCH M81714602004 Common Termination System
The DEUTSCH CTJ Series common termination system from TE Connectivity is a robust solution for interconnecting wires and components in demanding environments. Featuring a single-pin bus bar design and AS39029 socket contacts, this system eliminates the need for pin contacts in mating components. Available in various modules, junctions, and rails, the CTJ Series offers customization options to meet specific application requirements, ensuring long mechanical and electrical life.
TE Connectivity DEUTSCH M81714602004 Common Termination System Specifications:
- Meets Requirements: SAE-AS81714 and MIL-T-81714
- Dielectric Withstanding Voltage: 1500 VAC rms (at Sea Level), 200 VACrms (at 110,000 Ft)
- Insulation Resistance: 5000 M min. at 25°C
- Operating Temperature: -65°C to +200°C
- Physical Shock: 78 g
- Vibration: Maintains continuity, minimizes mechanical/physical damage
- Contact Resistance (at 25°C) - 5A: 73 mV (22 AWG)
- Contact Resistance (at 25°C) - 7.5A: 55 mV (20 AWG)
- Contact Resistance (at 25°C) - 13A: 50 mV (16 AWG)
- Contact Resistance (at 25°C) - 23A: 42 mV (12 AWG)
- Usable Wire Size - Contact Size 22: 26–22 AWG, 5 A
- Usable Wire Size - Contact Size 20: 24–20 AWG, 7.5 A
- Usable Wire Size - Contact Size 16: 16–20 AWG, 13 A
- Usable Wire Size - Contact Size 12: 14–12 AWG, 3 A
- Grommet Sealing Range - Min (22 Contact): 0.030
- Grommet Sealing Range - Max (22 Contact): 0.060
- Grommet Sealing Range - Min (20 Contact): 0.040
- Grommet Sealing Range - Max (20 Contact): 0.083
- Grommet Sealing Range - Min (16 Contact): 0.065
- Grommet Sealing Range - Max (16 Contact): 0.109
- Grommet Sealing Range - Min (12 Contact): 0.097
- Grommet Sealing Range - Max (12 Contact): 0.142
- Corrosion Resistance: 48 hours of salt spray
- Magnetic Permeability: 2.0 max.
- Fluid Resistance: MIL-PRF-5606, MIL-DTL-83133, MIL-PRF-7808, MIL-PRF-23699, MIL-A-8243, MIL-C-25769, MIL-PRF-87937, MIL-G-3056
Buy the M81714/60-20-04 TE Connectivity DEUTSCH Common Termination System | myMectronic
Purchase the DEUTSCH M81714/60-20-04 connector securely and reliably online.
