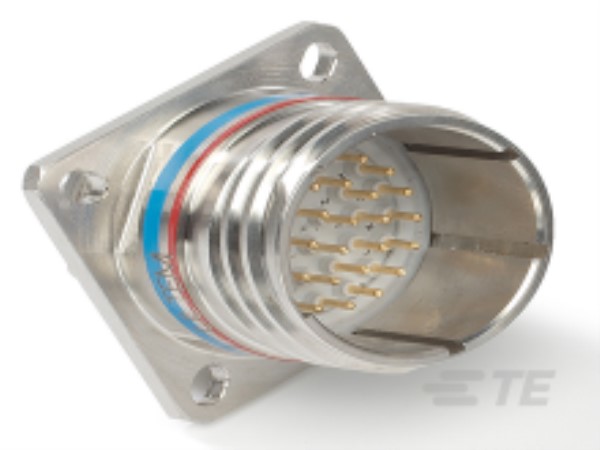

TE Connectivity DEUTSCH ZPF000000000016206 Aerospace Connector Assembly
This replacement assembly is designed for use in defense, aerospace, and industrial applications. It features rugged construction with high vibration, shock, and EMI resistance, ensuring reliable performance in demanding environments. The assembly includes a durable aluminum alloy shell, gold-over-nickel contacts, and silicone inserts for optimal electrical connectivity. It withstands extreme temperatures from -65°C to +475°C, offers high insulation resistance of 5000 megaohms, and complies with military standards for corrosion and salt spray resistance. Ideal for complex interconnections requiring durability and precision in harsh conditions.
TE Connectivity DEUTSCH ZPF000000000016206 Aerospace Connector Assembly Specifications:
- Shell Material: Aluminum alloy
- Contact Material: Copper alloy with gold over nickel plating
- Temperature Range: -65°C to +475°C
- Vibration Resistance: Up to 80 G’s sine, 41.7 G’s rms random
- Shock Resistance: Meets MIL-S-901 standards
- EMI Shielding: Effective from 100 MHz to 10 GHz with a minimum of 50 dB at 10 GHz
- Insulation Resistance: 5000 megaohms minimum at +25°C
- Corrosion Resistance: 500 hours salt spray per MIL-C-38999
- Current Ratings: 22D—5.0A, 20—7.5A, 16—13.0A, 12—23.0A
- Withstand Voltage: 1300 VAC sea level, 550 VAC at 50,000 ft, 350 VAC at 70,000 ft, 200 VAC at 100,000 ft
- Physical Dimensions: Shell sizes 9 to 25, suitable for various cable and mounting configurations
- Finish: Cadmium over nickel (Class W), nickel plated (Class F), with optional natural or olive drab coatings
- Fluid Resistance: Resists many fuels, coolants, and solvents as per MIL-C-38999
Buy the Deutsch Series DTS Connector: ZPF000000000016206
Order the Deutsch aerospace connector assembly ZPF000000000016206 online today to ensure you get a rugged, high-performance interconnect suitable for critical aerospace and defense applications. This connector provides excellent EMI shielding, corrosion resistance, and temperature resilience from -65°C to +475°C, making it ideal for harsh environments. With high current ratings and MIL-spec compliance, it guarantees reliable electrical connections. Purchase now for timely delivery and ensure your project benefits from top-tier quality and durability in demanding operational conditions.
Buy Deutsch ZPF000000000016206 now and experience unmatched reliability and performance in demanding aerospace and defense environments.
Frequently Asked Questions
Where can I buy TE Connectivity DEUTSCH ZPF000000000016206?
You can click on the BUY or RFQ button to purchase ZPF000000000016206 from an authorized TE Connectivity DEUTSCH distributor.
How do I troubleshoot issues or seek technical support for part ZPF000000000016206?
You can download the ZPF000000000016206 datasheet or visit the TE Connectivity DEUTSCH website for support.
Who is the manufacturer of ZPF000000000016206?
TE Connectivity DEUTSCH
