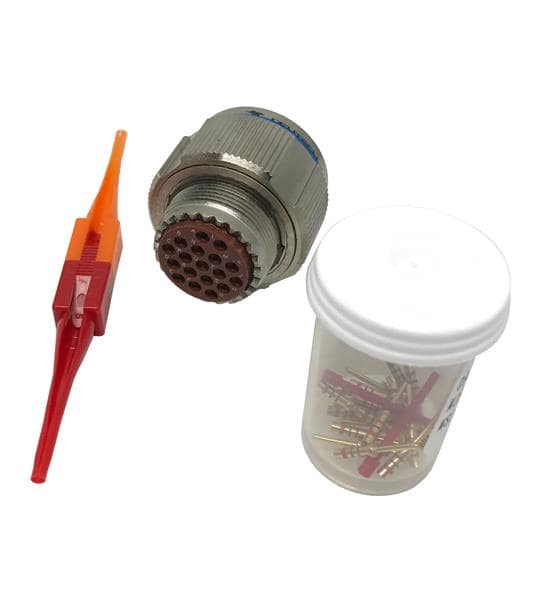

TE Connectivity DEUTSCH ZPF000000000127792 Signal Connector
This is a circular pin connector with 18 positions, designed for crimping onto standard signals or power cables. It features a cable mount design with 18 terminals and a single port connection, suitable for secure and reliable electrical connections in various electronic applications.
TE Connectivity DEUTSCH ZPF000000000127792 Signal Connector Specifications:
- Shell Material: Aluminum alloy
- Pin Contacts: Copper alloy with gold over nickel plating
- Number of Positions: 18
- Contact Rating: 5.0 amps (22D), 7.5 amps (20), 13.0 amps (16), 23.0 amps (12)
- Temperature Range: -65°C to +475°C
- Vibration Resistance: Up to 80 G’s sine, 41.7 G’s rms random
- Shock Resistance: High impact per MIL-S-901
- Insulation Resistance: 5000 megaohms minimum at +25°C
- Shell Finish: Cadmium over nickel (Class W), Nickel plated (Class F)
- Fluid Resistance: Resists many fuels, coolants, and solvents per MIL-C-38999
- Connector Size: 09, 11, 13, 15, 17, 19, 21, 23, 25
- Wiring Range: Accepts 22–28 AWG
- Dielectric Withstanding Voltage: 1300 VAC (rms) at sea level
- Cable Mount: Yes, with crimp terminal design
- Environmental Resistance: Salt spray for 500 hours, EMI shielding from 100 MHz to 10 GHz
Buy the Deutsch Series DTS Signal Connector: ZPF000000000127792
Purchase the Deutsch Signal Connector ZPF000000000127792 online today. Engineered for durability, this 18-position circular connector ensures secure power and signal transmission. Featuring a rugged aluminum shell, gold-plated contacts, and a cable mount design, it offers excellent resistance to vibration, shock, and harsh environments. Ideal for aerospace, defense, or industrial applications, this connector provides reliable electrical connections with high insulation resistance and EMI shielding. Order now for fast delivery and efficient installation.
Get Deutsch ZPF000000000127792 today—built for precision, durability, and reliable electrical performance in demanding applications.
