TE CONNECTIVITY 1-2120871-1 Datasheet & Stock

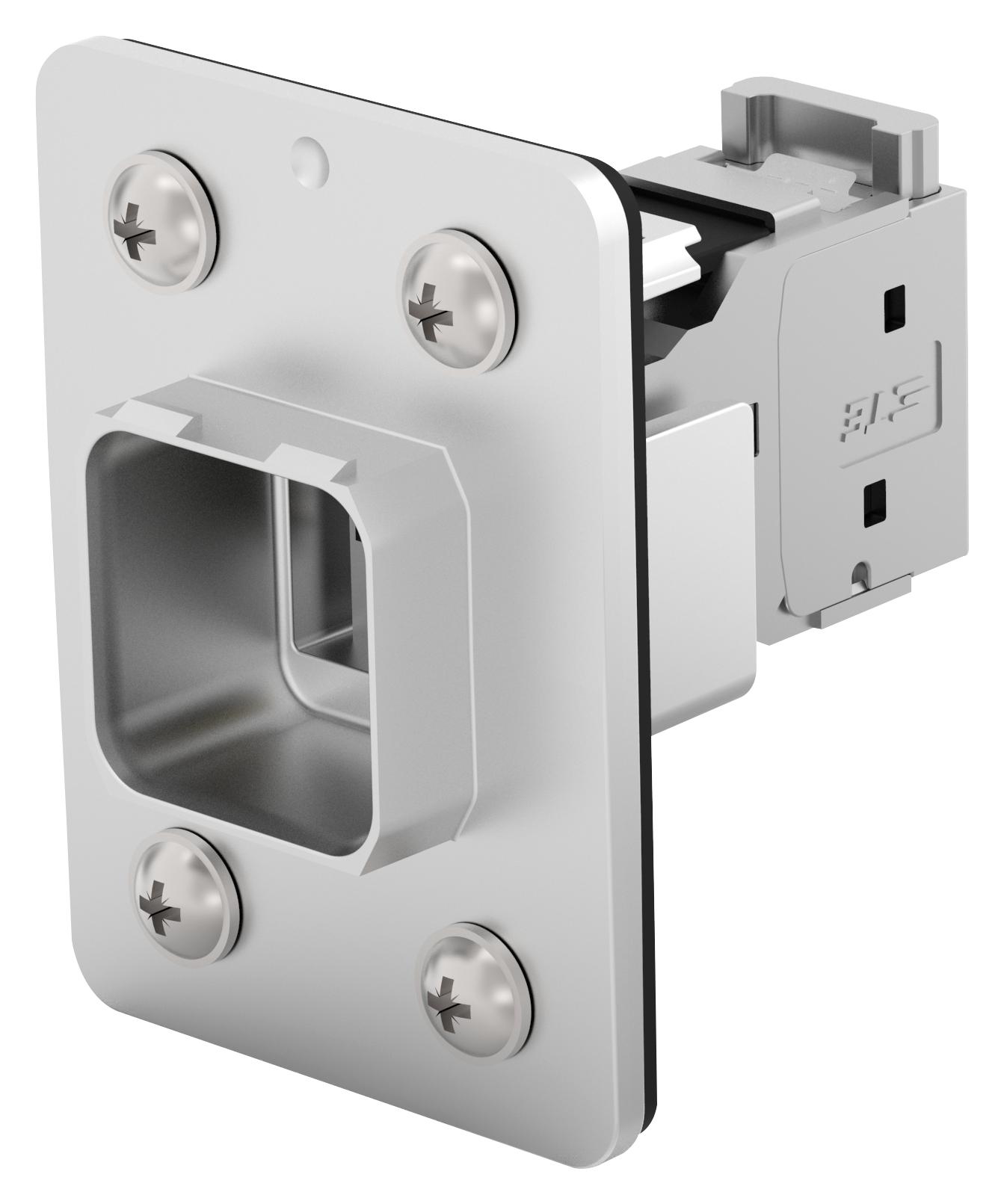

The new Industrial Cat6a RJ45 push pull variant metal shell connector is equipped with a robust termination technology that allows a timesaving and flexible field installation without any special tool. With its metal shell, this RJ45 connector is able to withstand harshest environments, such as shock, vibration or temperature, and offers good chemical, oil or spark resistance. Supporting IEC 61076-3-117, it is specifically suited for automotive production. Due to its high grade IP rating and durability, the metal shell version provides a reliable and safe connection and reduces maintenance cost. The comfortable push pull mechanism ensures a secure, sealed interconnection in which all common cable diameters can be terminated.




Frame dimensions: 26 mm (L) x 38 mm (W) x 52 mm (H)

Operating Temperature: -40 to +70 °C

Supports 750 mating cycles minimum

IEC Standardized Interface (IEC 61076-3-117)





Applications


Automotive,

Industrial,

Communications & Networking,

Robotics
