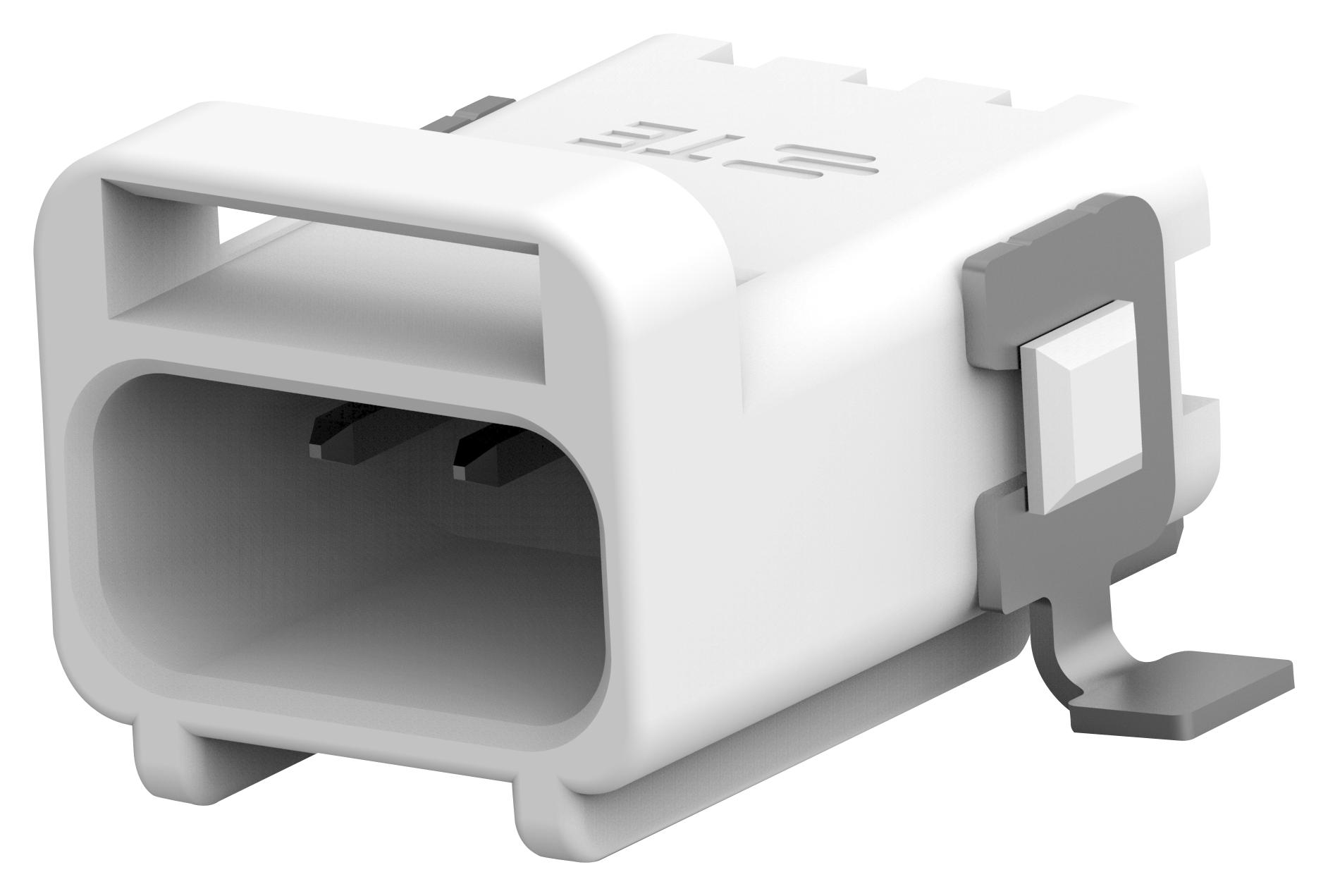

TE CONNECTIVITY 1-2834236-1 Datasheet & Stock

TE Connectivity's (TE) SlimSeal connector miniature series is a dust and waterproof, IP67-rated connector system suitable for harsh environment applications, such as outdoor lighting and other high humidity applications. This wire-to-board and wire-to-wire connector system is a space-saving solution available in two and three position configurations. A robust press-to-release spring latch helps ensure that connector mating is secure. Different colors enable easy identification and flexibility in design.




Prevent inadvertent un-mating of connectors with positive latching feature

Achieve an ideal solution for dust and waterproof applications with an IP67 rated connector

Save PCB space with a compact design

Reduce assembly time with pre-assembled seals

Operating temperature: -40°C to +105°C

Voltage rating: Wire-to-board: 250VAC Max. OR Wire-to-wire: 400VAC Max.

Rubber seal





Applications


Automotive,

Commercial,

Food & Drink,

HVAC,

Industrial,

Lighting,

Security,

Telecommunications
