TE CONNECTIVITY 2-2366600-8 Datasheet & Stock

Dynamic D1000 slim small wire-to-wire connector is suitable for narrow spaces in small industrial equipment and small machinery applications. The size of the D1000 is 80% smaller than the D1200 series with low interference risk and streamlined design. Keying and the locking feature provide reliability and reduces unexpected unmating and lever breakage in narrow spaces such as robotic arms and other customer applications. Target markets are small industrial equipment, small machinery applications, robot, AGV and factory automation. Applications includes robotics, small Industrial robot, collaborative robot, scala robot, automatic-guided vehicle (AGV), servo motor and sensors.

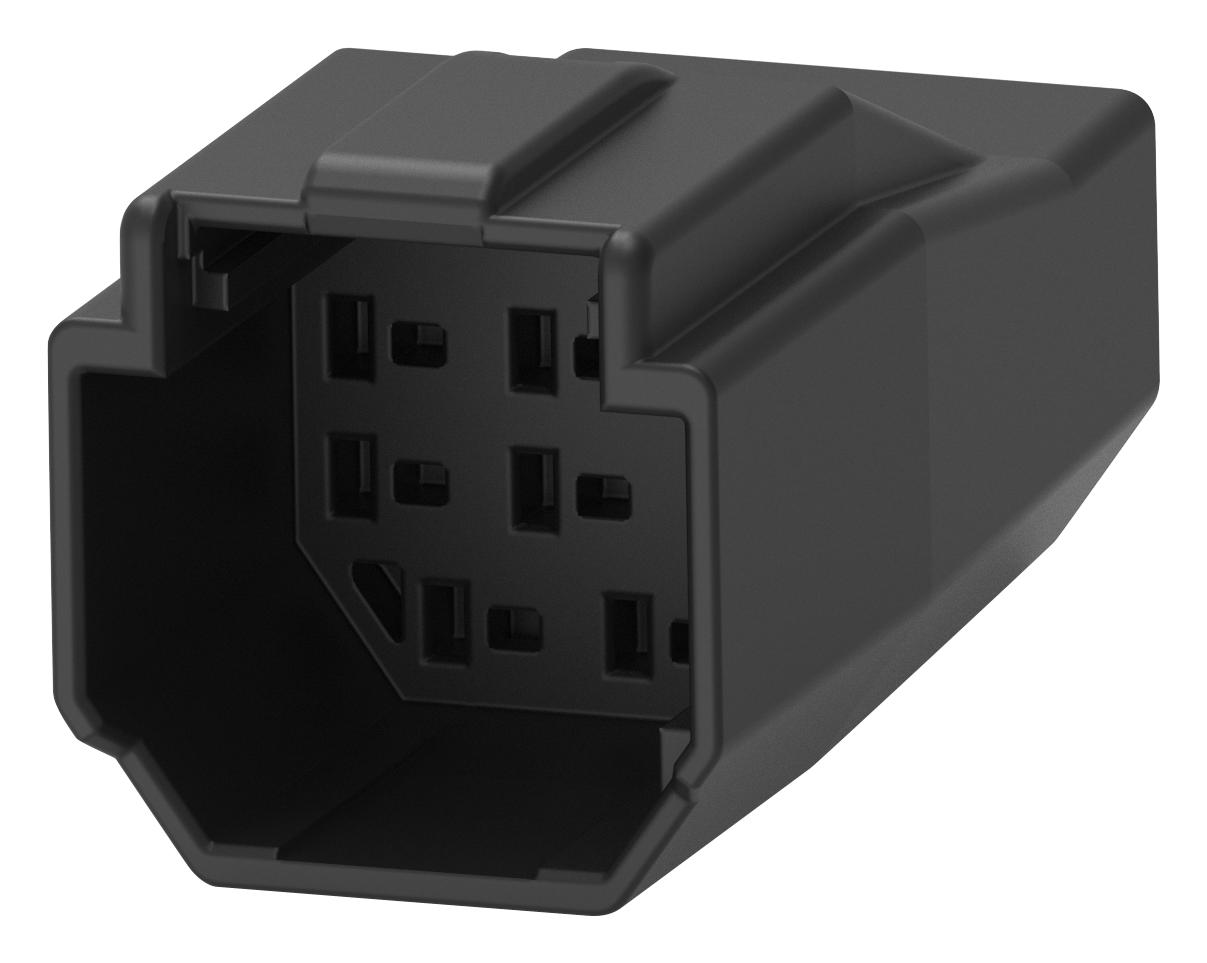

8 position TAB housing, Y key

Smaller size increases the connectivity per used space

Reducing risk of connector breakage by interference in narrow space

Reliability increased as the user can hear when connector is properly locked

Easy mating and crimping process to speed up installation time

Voltage rating of 250V AC/DC maximum

Withstand voltage of 1,500VAC/1 minutes

UL 94V-0 rated black colour thermo plastic housing

Copper alloy contact

Applicable temperature range from -55°C to +125°C
