TE CONNECTIVITY LM31-00000F-005PG Datasheet & Stock

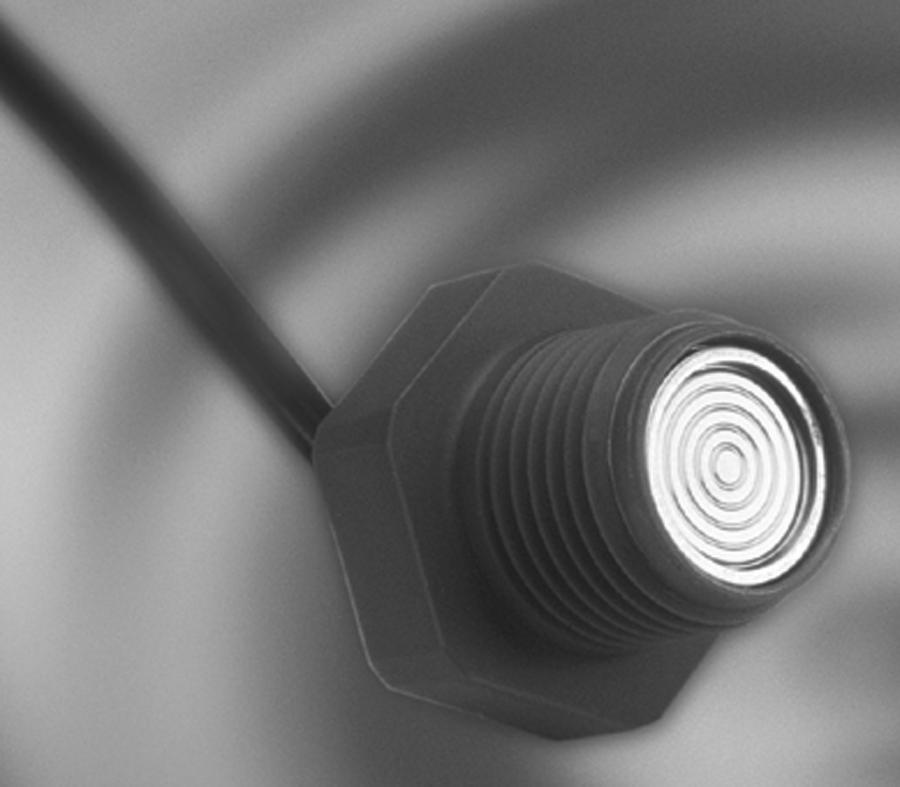

MEAS LM series liquid level sensor. It incorporates stainless steel and plastic isolation suitable for level sensing in water and other liquids. The LM uses a patented low-cost stainless-steel sensor in a PVC plastic fitting to measure liquid level based on the specific gravity of the liquid and the height of the tank or container. It is suitable for use in irrigation, RV and marine holding tank level, water storage & recycling systems, small tank fluid level, chillers & evaporative coolers applications.




0.5 to 4.5V ratiometric

ASIC calibrated

Threaded process fitting

Operating temperature range from -20°C to +70°C

±1% accuracy, ±3.0% total error band and solid state reliability

12±0.25 [305±6.4]Inches [mm] connection type

1/2-14 NPT pressure port

Gauge pressure type
